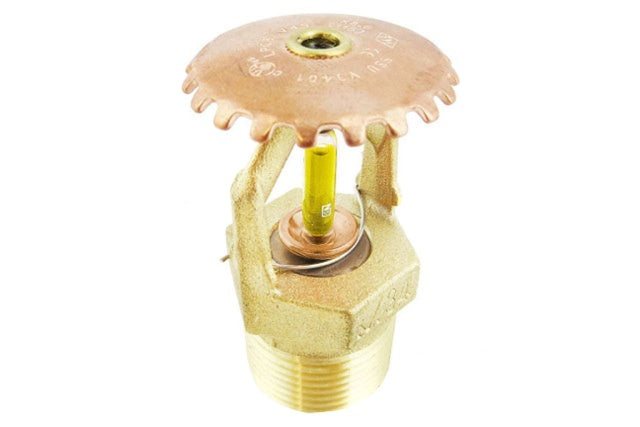

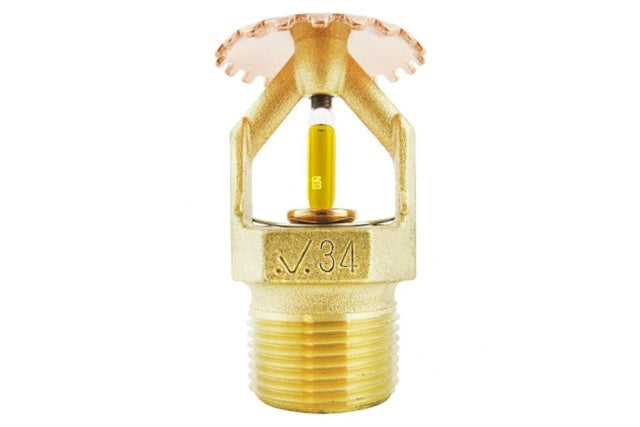

Victaulic S342AES510 V3401 Upright Sprinkler 8.0K 175F

Product Description

The Victaulic S342AES510 V3401 FireLock FL-SR Upright Fire Sprinkler is designed to activate at a temperature of 175F (79C). It features a K-Factor of 8.0, making it efficient for fire suppression needs. The sprinkler includes three-quarter inch NPT threads for easy installation.

• Activates at 175F (79C) with an 8.0 K-Factor.
• Constructed with a brass frame and a bronze deflector.
• Meets approvals from cULus, FM, LPCB, CE, VdS, and CCC ZSTZ-15 excluding 135F.

Product Highlights

This fire sprinkler is crucial for effective fire safety setups. Its standard response feature ensures that it performs reliably under high temperatures.

Product Information

Standard Information

• Manufacturer: Victaulic
• Model: V3401

Technical Specifications

• MPN: S342AES510
• Head Type: Upright
• Finish: Brass
• Size: 3/4 in. NPT Sprinkler
• K Factor: 8.0K
• Response Type: Standard Response
• Temperature Rating: 175F
• Material: Brass Frame, Bronze Deflector
