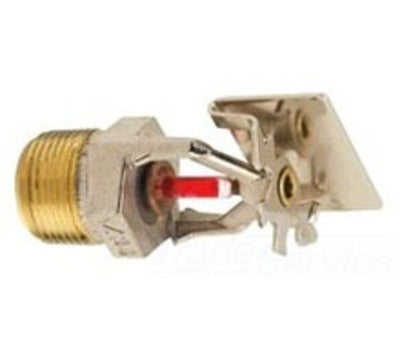

Victaulic S34-2HC-Q510 V3416 3/4 in. K8 Quick Response Horizontal Sidewall Fire Sprinkler

Product Description

The Victaulic S342HCQ510 is part of the V3416 series and is designed for light hazard fire protection. This sprinkler is made from die-cast brass with a brass finish. It features a 3/4-inch NPT connection and is suitable for quick response and extended coverage applications.

• Designed for horizontal sidewall installation.
• Operates with a minimum pressure of 7 PSI and a maximum pressure of 175 PSI.
• Utilizes a 3 mm glass bulb for rapid response.

Product Highlights

The sprinkler is cULus listed and FM approved, making it reliable for safety needs. It has a maximum operating temperature of +155 degrees Fahrenheit and is ideal for installations where quick activation is important.

Product Information

Standard Information

• Product Type: Sprinkler
• Material: Die Cast Brass

Technical Specifications

• Maximum Operating Temperature: +155 degrees Fahrenheit
• Size: 3-1/16 inches
• Maximum Operating Pressure: 175 PSI
• Minimum Operating Pressure: 7 PSI
• Thread Size: 3/4 inches
• Connection Type: NPT
• UPC: 688304445170
• Catalog Number: S342HCQ510
• Weight: 1 lb.
