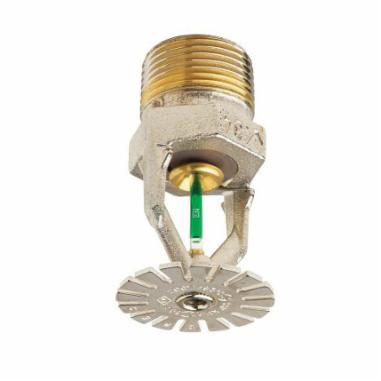

Victaulic S34-2GC-Q620 VICTAULIC S342GCQ620 FireLock Quick Response Pendent Sprinkler

Product Description

The Victaulic S342GCQ620 is a FireLock V3412 Series quick response sprinkler. This pendent sprinkler head is designed for fire protection systems and features a 3/4 inch male NPT connection. With a K-factor of 11.2, this unit ensures efficient performance in fire suppression. The construction uses brass and bronze materials for durability, finished with a chrome-plated surface. The product is FM Approved and UL Listed, making it suitable for commercial fire protection applications.

• Pendent sprinkler head for effective coverage
• Connects via a 3/4 inch male NPT
• Temperature rated for 155 degrees F

Product Highlights

The Victaulic S342GCQ620 provides reliable fire protection for commercial buildings.

Product Information

Standard Information

• Brand: Victaulic
• MPN: S342GCQ620

Technical Specifications

• Series: V3412 Series
• Sprinkler Head Type: Pendent
• Product Type: Fire Sprinkler
• Application: Commercial
• Connection Type: NPT
• Thread Size: 3/4 inches
• K-Factor: 11.2
• Temperature Rating: 155 degrees F
• Pressure Rating: 175 psi
• Material: Brass, Bronze
• Finish: Chrome-Plated
• Overall Length: 2-1/2 inches
• Response Type: Quick Response
• UL Listed: Yes
• FM Approved: Yes
• Weight: 0.28 lb
• Opening Size: 1-3/8 inches
• Installation Type: Ceiling Mount
• End Connection 1: MPT
• End Connections: MPT
• Pressure - Maximum: 500 psi
• Size: 1-3/8 inches x 2-1/2 inches
