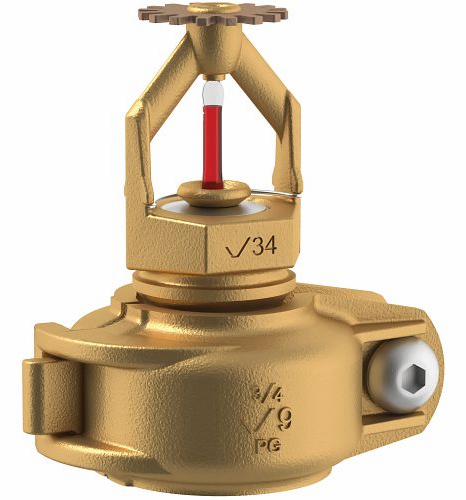

Victaulic S34-2BJ-S520 V3405 FireLock Pendent Sprinkler, 3/4 in, 8.0 K, 286F

Product Description

The VICTAULIC S342BJS520 is a FireLock FL-SR (V3405) pendent fire sprinkler that provides reliable fire protection in commercial settings. It features a three-quarter inch NPT thread connection and is made with a durable chrome finish. This sprinkler has an 8.0 K-Factor and is rated for temperatures up to 286 degrees Fahrenheit. The unit is UL listed and FM approved for added safety and compliance.

• Features a 3/4 inch NPT thread connection for installation.
• Brass frame and bronze deflector ensure durability.
• Maximum working pressure of 175 PSI for effective performance.

Product Highlights

Designed for standard coverage in wet pipe sprinkler systems.

Product Information

Standard Information

• Brand: Victaulic
• Model: FireLock FL-SR

Technical Specifications

• MPN: S342BJS520
• SKU: V3405CH286
• Head Type: Pendent
• Finish: Chrome Plated
• Size: 3/4 inch NPT
• K Factor: 8.0K
• Response Type: Standard Response
• Temperature: 286F
• Material: Brass Frame, Bronze Deflector
• Maximum Working Pressure: 175 PSI
• Length: 1.31 inches
• Width: 1.31 inches
• Height: 2.5 inches
• Weight: 0.33 lb.
• Connection Size: 3/4
• Connection Type: MPT
