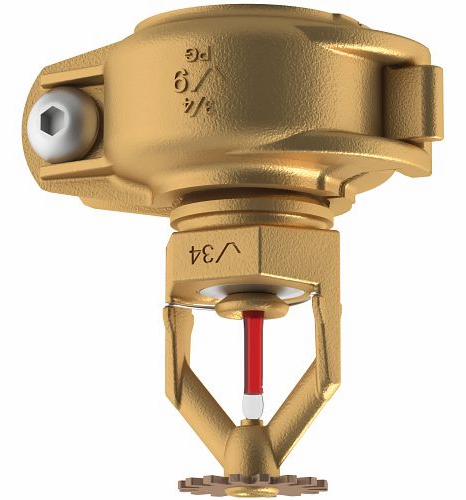

Victaulic S34-2BF-Q510 FireLock Quick Response Recessed Pendent Sprinkler Head

Product Description

The Victaulic S342BFQ510 FireLock Quick Response Recessed Pendent Sprinkler Head is designed for effective fire suppression. It utilizes a three-fourth inch NPT connection for seamless integration into existing piping systems. The sprinkler operates with a K-factor of 8.0 and is activated at a temperature of 200 degrees Fahrenheit. The unit features a durable brass frame and a bronze deflector, ensuring reliable performance in fire safety applications.

• Features a quick response mechanism for rapid fire suppression.
• Complies with cULus and FM standards for fire protection.
• Constructed with a brass frame and bronze deflector.

Product Highlights

This sprinkler head is built for standard coverage and can withstand a maximum working water pressure of 175 PSI. Ideal for recessed escutcheon mounting, it is suitable for various fire protection setups.

Product Information

Standard Information

• Brand: Victaulic
• MPN: S34-2BF-Q510

Technical Specifications

• Connection Size: 3/4 inch
• Connection Type: MPT
• Item Weight: 0.28 lb.
• K Factor: 8.0
• Response Type: Quick Response
• Temperature: 200F
• Head Type: Pendent
• Max Working Water Pressure: 175 PSI
• Material: Brass Frame, Bronze Deflector
• UL Listed: Yes
• FM Approved: Yes
• Length: 1.31 inches
• Width: 1.31 inches
• Height: 2.5 inches
