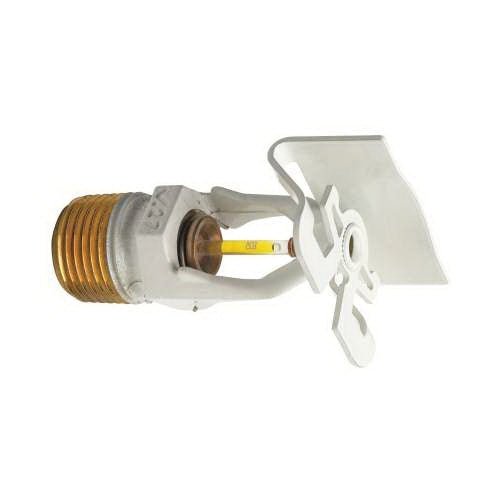

Victaulic S271LCQA41 Horizontal Sidewall Sprinkler 1/2 in NPT Quick Response V2738

Product Description

The Victaulic S271LCQA41 is a horizontal sidewall sprinkler designed for residential fire protection. This model helps meet NFPA standards for safety and efficiency. It features a quick response design with a frangible glass bulb to ensure prompt activation. The streamlined die cast frame improves aesthetics and functionality, reducing assembly time.

• UL listed for use under smooth flat ceilings
• Residential coverage of up to three hundred twenty square feet
• Temperature rating of one hundred fifty-five degrees Fahrenheit

Product Highlights

This sprinkler is suitable for various residential applications, meeting codes and regulations for safe installations.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Type: NPT
• Dimension: one and five-eighths inches height
• Finish: white-painted
• Item Name: horizontal sidewall sprinkler
• K-Factor: 4.2
• Model: V2738
• Nominal Size: one-half inch
• Orifice Size: seven-sixteenths inch
• Pressure Rating: two hundred fifty psi
• Sub Brand: FireLock
• Temperature Rating: one hundred fifty-five degrees Fahrenheit
• Type: quick response
• Standards/Certifications: cULus, NYC/MEA listed, CSFM approved
• Applications: for residential applications
