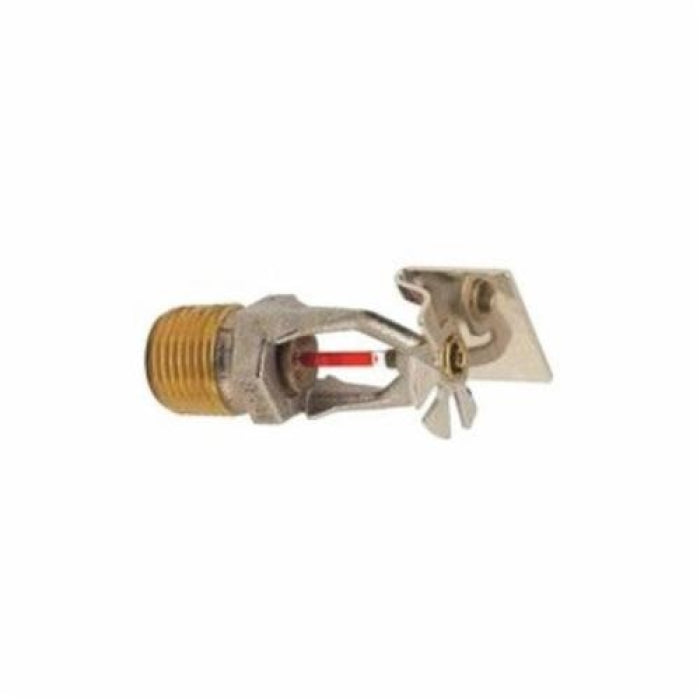

Victaulic S271LCQA21 FireLock V2738 Chrome-Plated Quick Response Horizontal Sidewall Sprinkler 1/2 in

Product Description

The Victaulic S271LCQA21 is a FireLock V2738 quick response horizontal sidewall sprinkler. It has a nominal size of half an inch with a K-factor of four point two. This sprinkler meets the requirements of NFPA 13, 13D, and 13R for residential applications.

• Compatible with various finishes
• UL listed for use under smooth flat ceilings
• Prompt response due to the heat-responsive glass bulb design

Product Highlights

This sprinkler is designed for residential use and provides effective coverage in room sizes up to three hundred twenty square feet.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Type: NPT
• Dimension: 1-5/8 in H
• Finish: Chrome-Plated
• Item Name: Horizontal Sidewall Sprinkler
• K-Factor: 4.2
• Model: V2738
• Nominal Size: 1/2 in
• Orifice Size: 7/16 in
• Pressure Rating: 250 psi
• Sub Brand: FireLock
• Temperature Rating: 155 deg F
• Type: Quick Response
