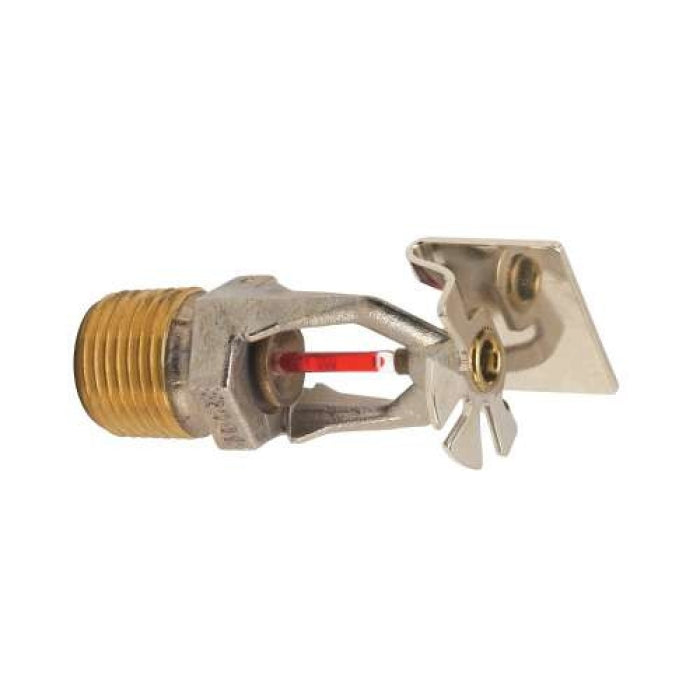

Victaulic S271CFQ420 FireLock V2710 Chrome-Plated Quick Response Horizontal Sidewall Sprinkler 1/2 in NPT

Product Description

The Victaulic S271CFQ420 is a FireLock V2710 chrome-plated quick response horizontal sidewall sprinkler designed for various commercial applications. This sprinkler features a 1/2 inch NPT connection and can operate at a maximum temperature rating of 200 degrees Fahrenheit. It is suitable for standard or recessed installations, providing a crescent-shaped water discharge pattern.

• Quick response technology for effective fire protection.
• Standard spray design for ordinary hazard locations.
• Flexible installation options with a hex-shaped wrench boss for easy assembly.

Product Highlights

The design of this sprinkler allows it to be installed along a wall or under a beam. The device is available in different temperature ratings and finishes.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Type: NPT
• Dimension: 3 inches H
• Finish: Chrome-Plated
• Item Name: Horizontal Sidewall Sprinkler
• K-Factor: 5.6
• Model: V2710
• Nominal Size: 1/2 inch
• Orifice Size: 1/2 inch
• Pressure Rating: 250, 175 psi
• Sub Brand: FireLock
• Temperature Rating: 200 degrees F
• Type: Quick Response
