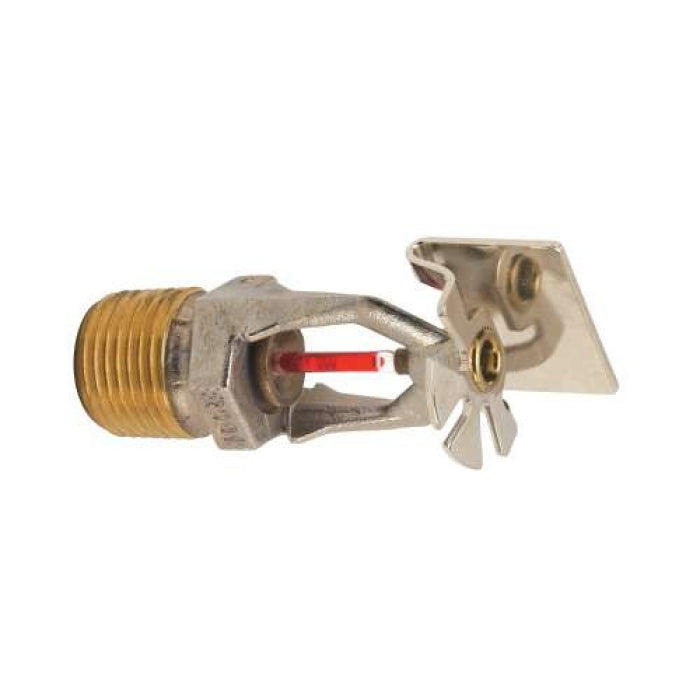

Victaulic S271CCQ420 FireLock V2710 Chrome-Plated Quick Response Horizontal Sidewall Sprinkler 1/2 in NPT

Product Description

The Victaulic S271CCQ420 is a FireLock V2710 chrome-plated quick response horizontal sidewall sprinkler. This sprinkler is designed to provide effective coverage in fire protection systems. It features a 1/2 inch NPT connection and operates at temperatures up to 155 degrees Fahrenheit.

• Quick response, suitable for ordinary hazard per NFPA 13
• Designed for standard and recessed installations
• Crescent-shaped water discharge pattern

Product Highlights

This sprinkler is ideal for commercial applications, providing reliable performance with a light glass bulb and low silicon bronze components.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Type: NPT
• Dimension: 3 inches H
• Finish: Chrome-Plated
• K-Factor: 5.6
• Model: V2710
• Nominal Size: 1/2 inch
• Orifice Size: 1/2 inch
• Pressure Rating: 250, 175 psi
• Sub Brand: FireLock
• Temperature Rating: 155 degrees Fahrenheit
• Type: Quick Response
• Applications: For commercial applications
• Standards/Certifications: cULus, FM approved, LPCB, CE, CCCf, CTP, CCC certified
