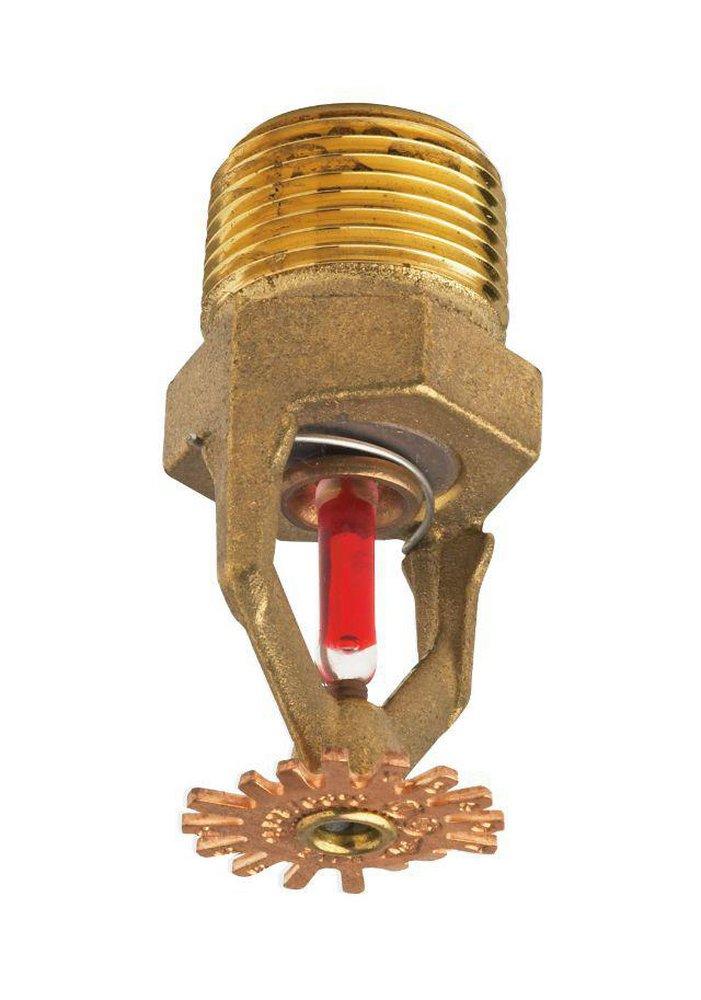

Victaulic S271BES420 Pendent Fire Sprinkler Head, Standard Response, 1/2 in, 5.6 K, 175 deg F

Product Description

The VICTAULIC S271BES420 FireLock® Pendent Sprinkler, a Series V2707 model, is designed for standard commercial applications, producing a hemispherical spray pattern. Operating at 250 psi, this standard response sprinkler has a 1/2 in NPT connection and a nominal K-Factor of 5.6 gpm. It features a hex-shaped wrench boss for easy tightening and is available in various temperature ratings and finishes.

• K5.6, 8.1 SI
• Available with Style V9 FireLock™ IGS™ Sprinkler Coupling
• cULus Listed

Product Highlights

Standard response pendent sprinkler head with a 1/2 in connection, 5.6 K-Factor, and 175 deg F temperature rating, designed for commercial applications.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: S271BES420

Technical Specifications

• Thread Size: 1/2 in
• Nominal K-Factor: 5.6 K
• Temperature Rating: 175 deg F
• Type: Pendent
• Activation Type: Standard Response
• Finish/Color: Chrome
• Connection Type: NPT
• Overall Length: 2-3/8 in
• Pressure Rating: 250 psi
• Series: V2707
• Brand: Victaulic®
• Manufacturer: Victaulic
• Application: Commercial
• Collection: FireLock™ Model V2707
• Color Finish Category: Chromes
• Color Finish Name: Chrome
• End Connection 1: MPT
• End Connections: MPT
• FM Approved: Yes
• Installation Type: Ceiling Mount
• K-Factor: 5.6
• Material: Bronze, Brass, Ductile Iron, Nickel Alloy, Plastic, Stainless Steel
• Product Type: Pendant, Standard Response
• UL Listed: Yes
