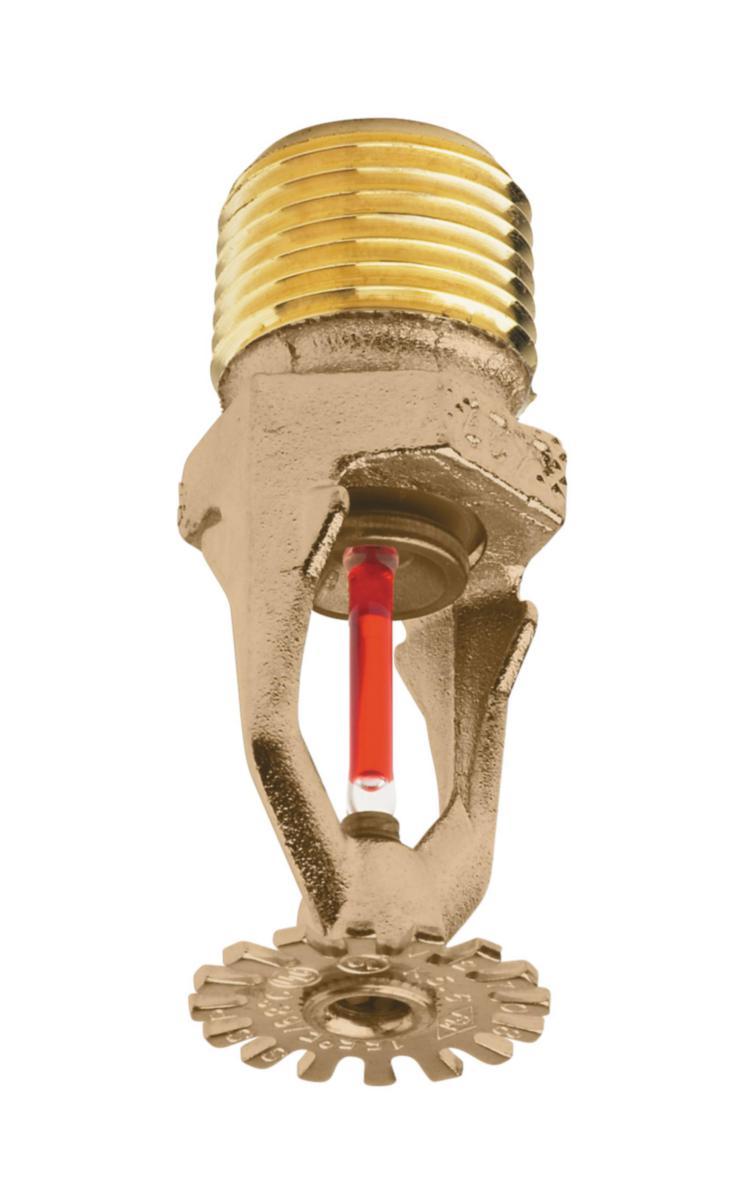

Victaulic S271BEQ410 V2708 Pendent Sprinkler QR 5.6K

Product Description

The Victaulic S271BEQ410 V2708 FireLock FL-QR is a quick response pendent fire sprinkler designed for effective fire suppression. This unit features a glass bulb that activates at one hundred seventy-five degrees Fahrenheit and includes a 5.6 K-Factor. The sprinkler utilizes half-inch NPT threads and has a robust brass frame with a bronze deflector. Its design produces a large hemispherical spray pattern suitable for standard commercial applications.

• Quick response pendent fire sprinkler head
• Glass bulb activates at 175F (79C) with a 5.6 K-Factor
• Meets approvals from cULus, FM, LPCB, CE, VdS, and CCC ZSTZ-15

Product Highlights

This fire sprinkler is ideal for commercial spaces where reliable fire safety systems are required.

Product Information

Standard Information

• Manufacturer Part Number: S271BEQ410
• Manufacturer: Victaulic

Technical Specifications

• SIN: V2708
• Model: FireLock FL-QR
• Head Type: Pendent
• Finish: Brass
• Size: 1/2 in.
• K Factor: 5.6K
• Response Type: Quick Response (QR)
• Temperature: 175F
• Heat Element: Glass Bulb
• Coverage: Standard Coverage
• Material: Brass Frame, Bronze Deflector
• Corrosion Resistant: No
• May Contain Lead: Yes
• UL Listed: Yes
• FM Approved: Yes
• Maximum Working Water Pressure: 175 PSI (UL, FM), 250 PSI (UL)
• Escutcheon Type: Recessed
• Length: 2.94 in.
• Width: 2.94 in.
• Application: Commercial
• Collection: FireLock Model V2708
• Color Finish Category: Brass Tones
• End Connections: MPT
• Product Type: Pendant, Quick Response
• Thread Size: 1/2 in.
