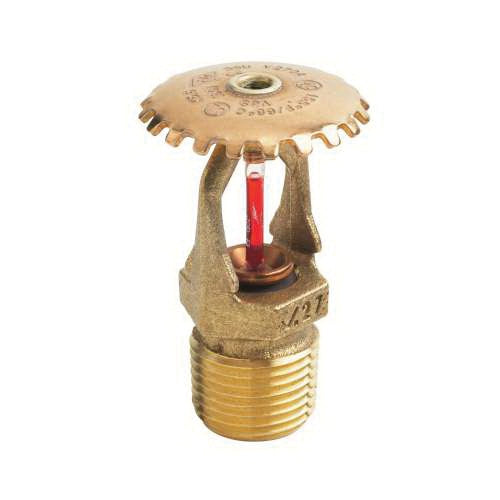

Victaulic S271AFQ410 FireLock V2704 Plain Brass Quick Response Upright Sprinkler 1/2 in NPT

Product Description

The Victaulic S271AFQ410 is a part of the FireLock V2704 series, designed as a quick response upright sprinkler. This model features a half inch NPT connection and operates at a maximum temperature rating of 200 degrees Fahrenheit. It offers a K-Factor of 5.6, making it suitable for various commercial applications.

• Designed for standard commercial applications
• Uses a 3 mm glass bulb with glycerin solution
• Certifications: cULus, FM approved, and LPCB

Product Highlights

This sprinkler provides a hemispherical spray pattern and can be installed easily, reducing assembly time.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: S27-1AF-Q410

Technical Specifications

• Connection Type: NPT
• Dimension: 2-3/8 in H
• Finish: Plain Brass
• Item Name: Upright Sprinkler
• K-Factor: 5.6
• Model: V2704
• Nominal Size: 1/2 in
• Orifice Size: 1/2 in
• Pressure Rating: 250, 175 psi
• Sub Brand: FireLock
• Temperature Rating: 200 deg F
• Type: Quick Response
