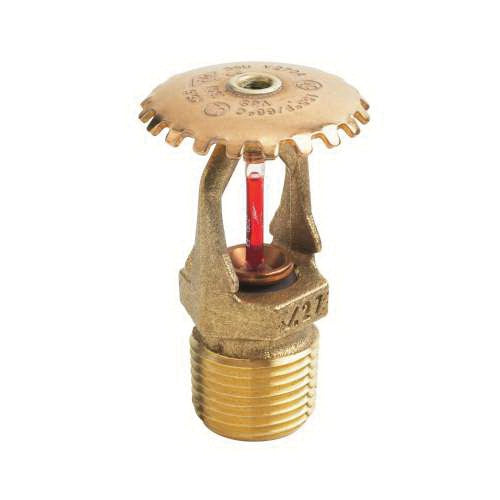

Victaulic S271ACQ410 Upright Sprinkler Quick Response 1/2 in

Product Description

The Victaulic S271ACQ410 is a fire protection sprinkler designed for commercial applications. It features a quick response system and a 1/2 inch NPT connection. This sprinkler is suitable for various temperature ratings and is constructed from durable materials.

• Quick response design for effective fire suppression
• Plain brass finish for reliability
• Hemispherical spray pattern for efficient coverage

Product Highlights

This sprinkler is ideal for light, ordinary, extra hazard, and storage applications. It incorporates a 3 mm glass bulb filled with glycerin for reliable operation.

Product Information

Standard Information

• Brand: Victaulic
• Model: V2704

Technical Specifications

• Connection Type: NPT
• Dimension: 2-3/8 in H
• Finish: Plain Brass
• K-Factor: 5.6
• Nominal Size: 1/2 in
• Orifice Size: 1/2 in
• Pressure Rating: 250, 175 psi
• Temperature Rating: 155 deg F
• Type: Quick Response
• Standards/Certifications: cULus, FM approved, LPCB, CTP, CCC, VdS, CE 0786, CCCf certified
