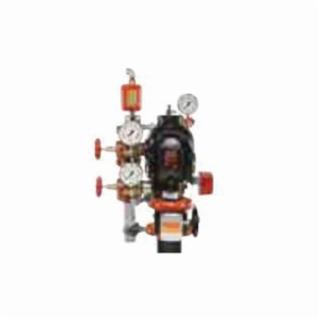

Victaulic S080768405 Ductile Iron Quick Riser Dry System Check Valve

Product Description

The Victaulic FireLock NXT 768, MPN S080768405, is a dry system check valve designed for use with dry-pipe sprinkler systems. This valve effectively separates water supplies to prevent undesired flow. It features a low differential, which ensures reliable activation and operation of alarms until the water flow ceases.

• Ductile iron construction for durability
• Low differential design with a latched clapper
• Maintenance can be performed in place

Product Highlights

The valve is constructed with a grooved end connection and allows for easy maintenance without the need for removal.

Product Information

Standard Information

• Sub Brand: FireLock NXT
• Series: 768

Technical Specifications

• Item Name: Dry System Check Valve
• Type: Quick Riser
• Nominal Size: 8 inches
• Connection Type: Grooved End
• Pressure Rating: 300 PSI Working, 600 PSI Test
• Body Material: Ductile Iron
• Seal Material: Peroxide Cured EPDM
• Material Standard: ASTM A536/A395 Grade 65-45-12/65-45-15
• Industry Standards: C/US UL Listed, FM Approved, VDS, LPCB 104c/01, CE Certified
• Width: 25-1/4 inches
• Height: 45-1/2 inches
• Lead Free: No
• Flow Coefficient (Cv): 1500
