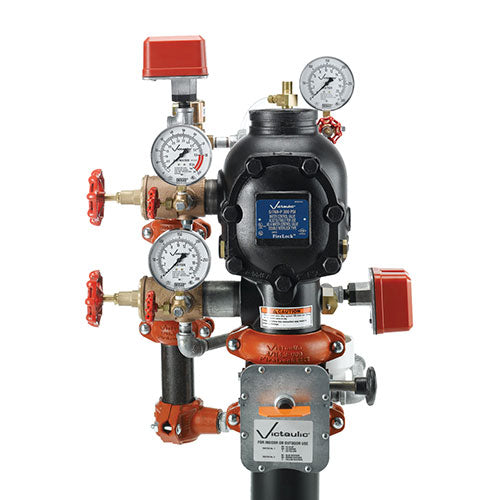

VICTAULIC S060768405 FireLock NXT Dry Valve 6 IN Replacement MPN

Product Description

The VICTAULIC FireLock NXT Dry Valve S060768405 is designed for quick riser dry systems. This valve features a low differential and a unique latch and actuator design that enables reset without opening the valve. Made from high-strength, low-weight ductile iron, it offers easy access to internal parts for maintenance and has a painted exterior to enhance corrosion resistance. The valve is optimized for Vic-quick riser applications and operates under a pressure rating of three hundred PSI, having been hydrostatically tested to six hundred PSI.

• Allows water to operate water motor and electric pressure alarms.
• Maintenance can be conducted without removing the valve.
• Includes a grooved end connection.

Product Highlights

This valve is suitable for dry fire protection systems and provides reliable performance in demanding environments.

Product Information

Standard Information

• Brand: VICTAULIC
• MPN: S060768405

Technical Specifications

• Series: 768
• Valve Size: 6 IN
• Material: Ductile Iron
• Connection Type: Grooved End
• Pressure Rating: 300 PSI Working, 600 PSI Test
• Seal Material: Peroxide Cured EPDM
• Material Standard: ASTM A536/A395 Grade 65-45-12/65-45-15
• Industry Standards: C/US UL Listed, FM Approved, VDS, LPCB 104c/01, CE Certified
• Width: 22 IN
• Height: 46 IN
• Lead Free: No
• Flow Co-Efficient (Cv): 1000
