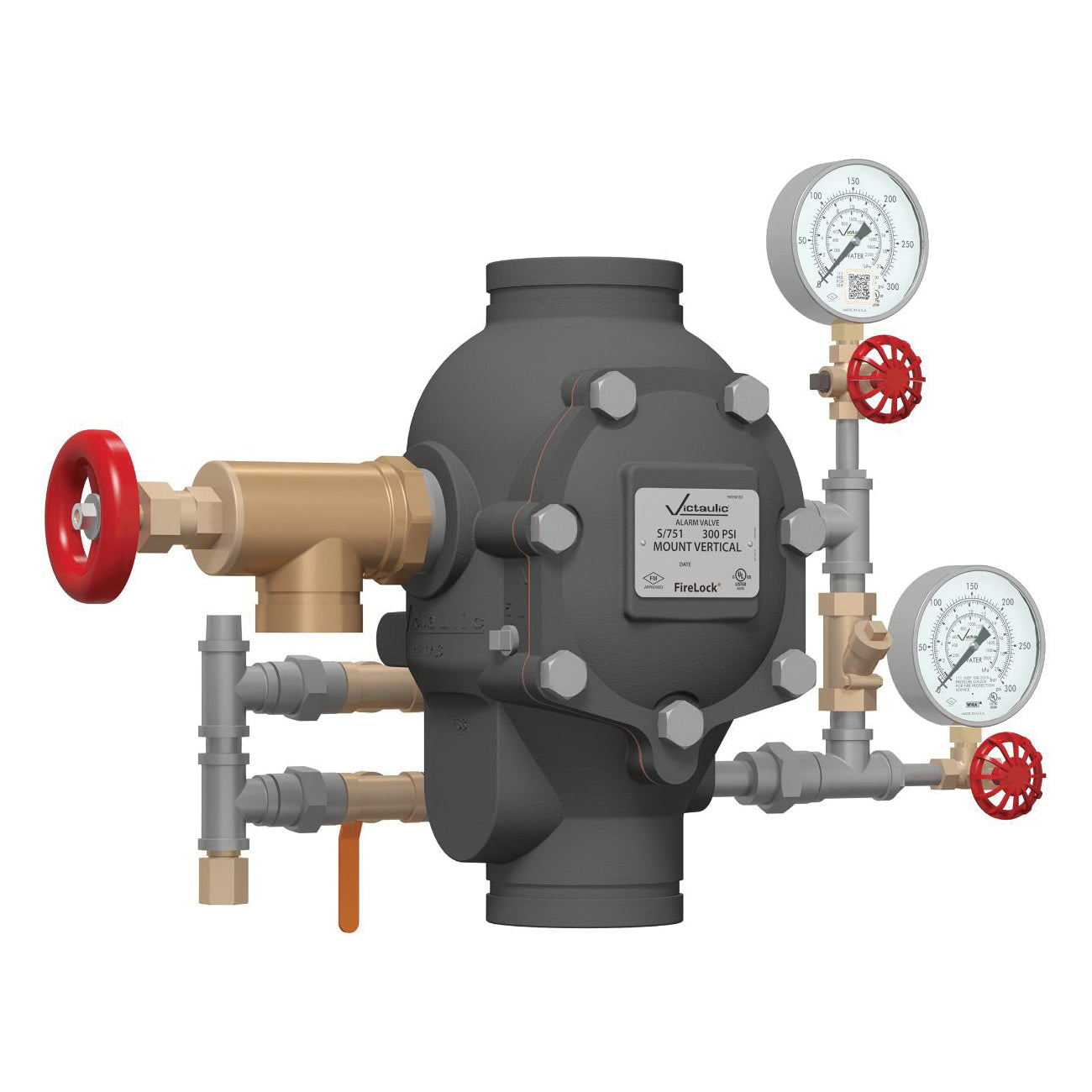

Victaulic S060751201 Alarm Check Valve 6 in

Product Description

The Victaulic S060751201 FireLock® 751 Vertical Alarm Check Valve is a crucial component for preventing the reverse flow of water. This valve features a six-inch nominal size and a grooved end style, making it appropriate for various water media applications. Constructed from durable ductile iron, it can sustain a maximum pressure of three hundred psi. This product is cULus Listed and adheres to ASTM A536, Grade 65-45-12 specifications.

• Vertical Alarm Check Valve
• Grooved End Style
• Ductile Iron Body

Product Highlights

Ideal for fire protection systems, this valve ensures reliable operation and compliance with safety standards.

Product Information

Standard Information

• Series: 751
• Nominal Size: 6 in

Technical Specifications

• End Style: Grooved
• Maximum Pressure: 300 psi
• Specifications Met: ASTM A536, Grade 65-45-12, cULus Listed
• Media: Water
• Inlet to Outlet Length: 16 in
• Top to Inlet Center: 14-1/4 in
• Body Material: Ductile Iron
• Clapper Seal: EPDM/ASTM D2000
• Seat O-Ring Softgoods: Nitrile
• Outer Diameter: 6.625 in
• Application: Fire Protection
• Coating: Painted
• Collection: FireLock® Series 751
• End Connections: Grooved
• FM Approved: Yes
• Height: 19 in
• Width: 27-1/4 in
• Weight: 95 lb
• Type: Vertical
