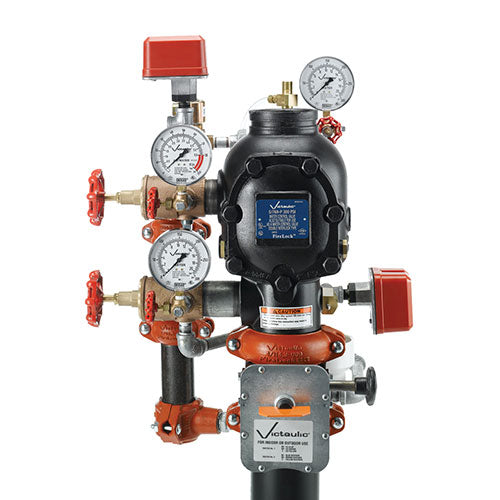

Victaulic S040768405 VICTAULIC FireLock NXT Series 768 Quick Riser Dry Valve

Product Description

The VICTAULIC S040768405 FireLock NXT Series 768 is a quick riser dry valve for dry-pipe sprinkler systems. This valve has a low differential, latched clapper design with a direct-acting diaphragm that separates water supplies effectively.

• Low differential design allows valve reset without opening.
• Constructed from high-strength, low-weight ductile iron.
• Features grooved end connections for easy installation.

Product Highlights

This valve is designed for use with water motor alarms and electric pressure alarms, ensuring functionality until water flow stops.

Product Information

Standard Information

• Brand: Victaulic
• MPN: S040768405

Technical Specifications

• Series: 768
• Sub Brand: FireLock NXT
• Product Type: Sprinkler Riser
• Item Name: Dry System Check Valve
• Type: Quick Riser
• Nominal Size: 4 inches
• Valve Size: 4 inches
• Connection Type: Grooved End
• Pressure Rating: 300 PSI Working, 600 PSI Test
• Body Material: Ductile Iron
• Seal Material: Peroxide Cured EPDM
• Material Standard: Body: ASTM A536/A395 Grade 65-45-12/65-45-15
• Industry Standards: C/US UL Listed, FM Approved, VDS, LPCB 104c/01, CE Certified
• Width: 20.5 inches
• Height: 45.5 inches
• Lead Free: No
• Flow Co-Efficient (Cv): 350
