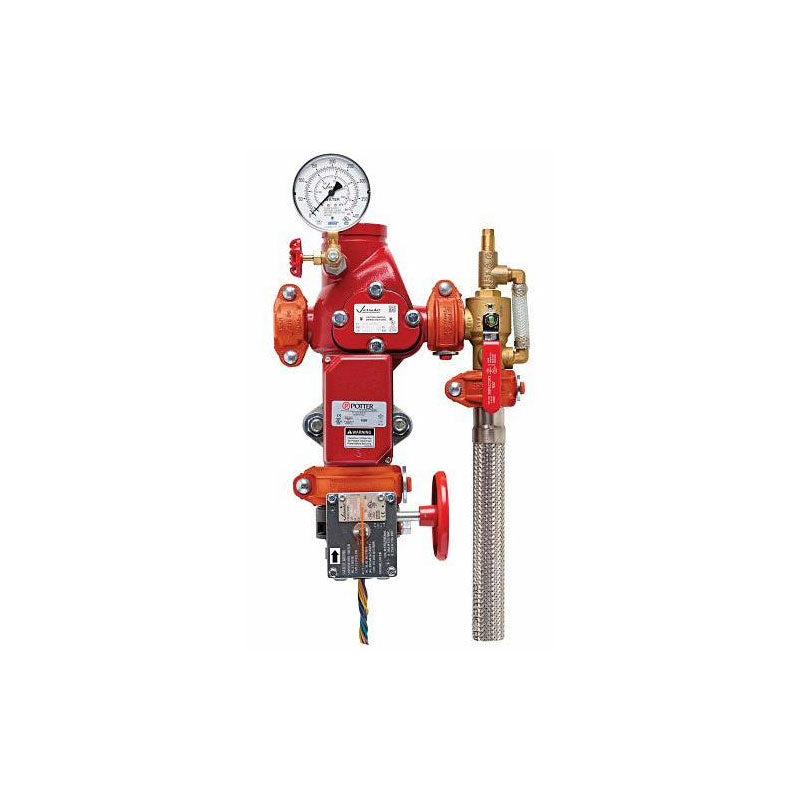

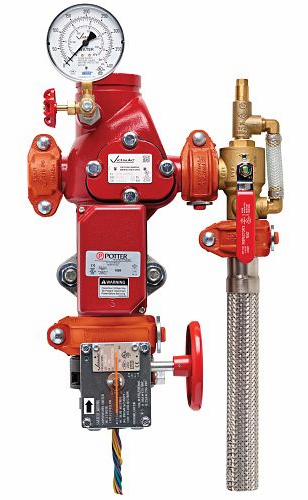

Victaulic S024UMCRV0 Universal Manifold Check Assembly Right Hand with Control Valve and Hose

Product Description

The Victaulic S024UMCRV0 is a universal manifold check assembly designed for fire protection systems. This assembly features a right-hand configuration, integrated control valve, and includes a hose. It complies with NFPA 13 standards and contains multiple essential components including a check valve, flow switch, and adjustable relief valve.

• Integrates control valve, check valve, flow switch, adjustable relief valve, flexible drain hose, and gauges
• Available in right-handed configurations with a mirrored port for field adjustments
• Supports pressure ratings up to 300 psi

Product Highlights

This assembly is suited for various commercial applications, providing reliable water flow control.

Product Information

Standard Information

• Brand: Victaulic
• MPN: S024UMCRV0

Technical Specifications

• Connection Size: 2-1/2 inch x 2-1/2 inch
• Connection Type: Grooved x Grooved
• Type: Manifold Check Valve with Control Valve and Hose
• Series: UMC
• Nominal Size: 2-1/2 inch
• End Style: Grooved
• Pressure Rating: 300 psi
• Hand: Right Hand Universal
• Material: Ductile Iron
• Orifice Size: 5.6 K
• Commercial/Residential: Commercial
• Suitable For Use With: FireLock Automatic Device
