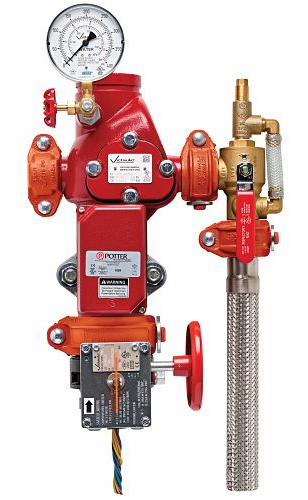

Victaulic S012UMCRV0 1-1/4 inches GxG Universal Manifold Check Assembly Right Hand with Control Valve and Hose

Product Description

The Victaulic S012UMCRV0 is a 1-1/4 inches GxG right-hand universal manifold check assembly. It features a control valve and hose integrated into a compact design. This assembly meets NFPA 13 standards and includes essential components for efficient operation.

• Includes control valve, check valve, flow switch, and adjustable relief valve.
• Right-handed configuration with a mirrored port for quick adjustments.
• Pressure rating up to 300 psi for reliable performance.

Product Highlights

This manifold assembly is ideal for commercial applications where reliable flow management is crucial.

Product Information

Standard Information

• Brand: Victaulic
• MPN: S012UMCRV0

Technical Specifications

• Connection Size: 1-1/4 inches x 1-1/4 inches
• Connection Type: Grooved
• Type: Right Hand Universal
• Pressure Rating: 300 psi
• Body Material: Ductile Iron
• Seat Material: Brass
• Material Standard: ASTM A536, Grade 65-45-12
• Industry Standards: CE Certified, cULus Listed, FM Approved, UKCA Approved
• Height: 20-1/2 inches
• End Style: Groove
• Fitting Size 1: 1-1/4 inches
• Fitting Size 2: 1-1/4 inches
