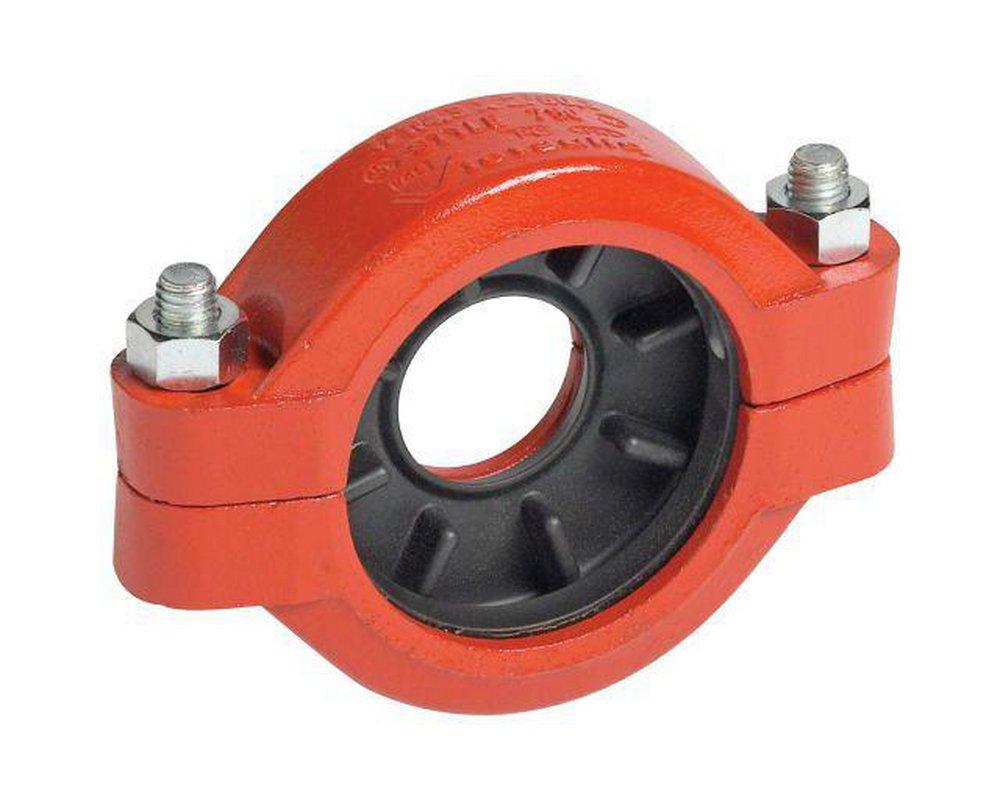

Victaulic LF47750PE0 FireLock Style 750 8 x 6 in Painted Grooved Reducing Coupling

Product Description

The Victaulic FireLock Style 750 8 x 6 inches Painted Grooved Reducing Coupling, MPN LF47750PE0, is designed for efficient pipe joining in various applications. This reducing coupling allows for a direct reduction in pipe runs, simplifying installation.

• Replaces two couplings and a reducing fitting.
• Permits direct reduction on piping run.
• Includes Grade E EPDM gasket.

Product Highlights

Ideal for joining OGS roll grooved and cut grooved pipe, as well as OGS grooved fittings, valves, and accessories.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: LF47750PE0

Technical Specifications

• Connection Size: 8 x 6 inches
• Finish: Orange Enamel
• Length: 14.88 inches
• Material: Ductile Iron
• Maximum End Load: 12060 lb
• Pressure Rating: 350 psi
• Temperature Rating: -30 to 230 degrees F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
