Victaulic LE79750PE0 FireLock Style 750 6 x 4 in Reducing Coupling

Product Description

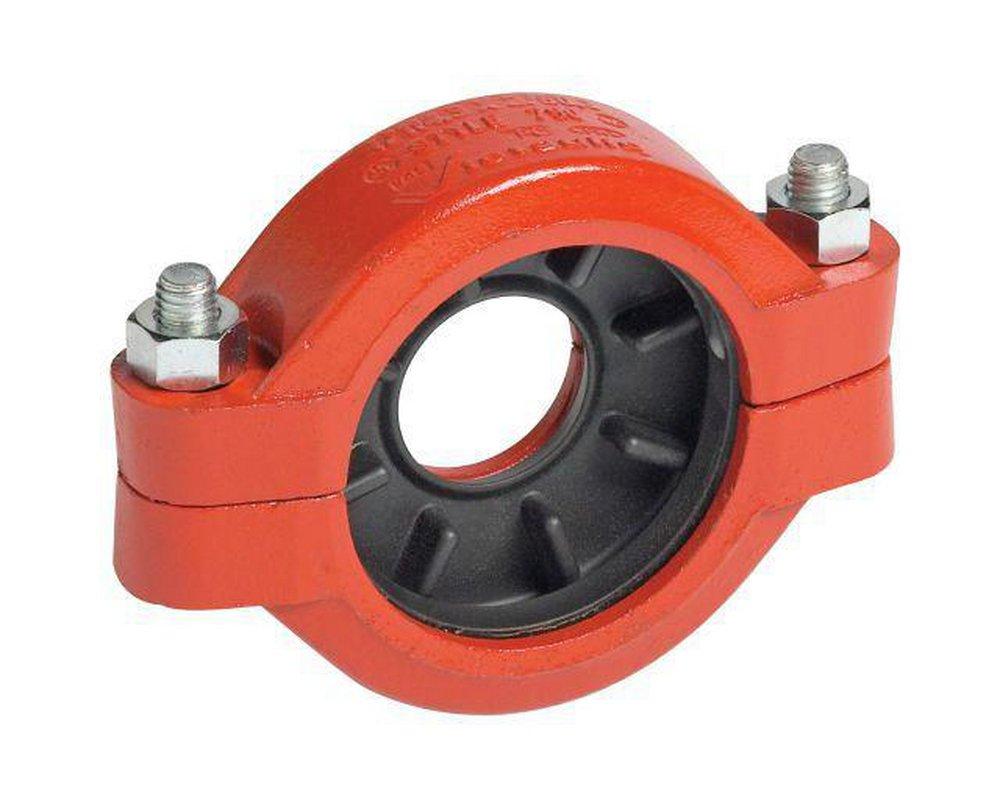

The Victaulic LE79750PE0 is a FireLock™ Style 750 reducing coupling designed for use with ductile iron pipes. It features a six-inch by four-inch connection size and is made from high-strength ductile iron with an orange enamel finish. This coupling is ideal for reducing pipe runs directly without the need for additional fittings.

• Replaces two couplings and a reducing fitting.
• Permits direct reduction on piping run.
• Gasket made from grade E EPDM for improved sealing.

Product Highlights

For various piping applications, the Victaulic LE79750PE0's design allows for straightforward installations, especially where space is limited.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 6 x 4 in
• Finish: Orange Enamel
• Item Name: Grooved Reducing Coupling with Grade E EPDM Gasket
• Length: 11.9 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 5565 lb
• Model: 750
• Pressure Rating: 350 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
• Applications: For use with OGS roll grooved and cut grooved pipes, OGS grooved fittings, valves, and accessories
