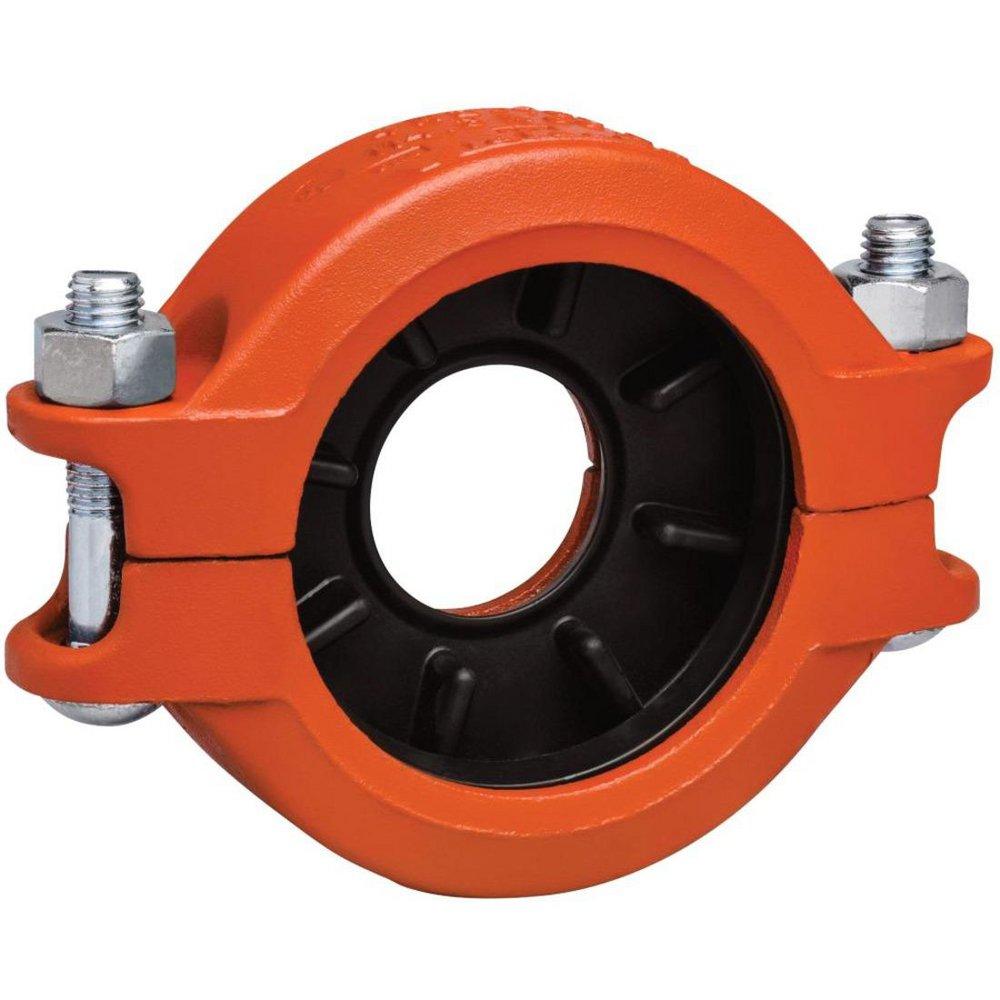

Victaulic LD29750PE0 FireLock Style 750 4 x 2 in. Painted Grooved Reducing Coupling

Product Description

The Victaulic LD29750PE0 is a FireLock Style 750 reducing coupling designed for ductile iron pipe systems. This coupling allows for the direct reduction of pipe size within a piping run. It is suitable for applications in various piping environments where strength and durability are required.

• Sizes from two to ten inches
• Pressure rating up to 350 psi
• Engineered for use with OGS roll-grooved and cut-grooved pipe

Product Highlights

Ideal for reducing pipe diameter while maintaining a tight and leak-free seal. The design integrates a grade E EPDM gasket, maximizing performance under varying temperatures.

Product Information

Standard Information

• Brand: Victaulic
• MPN: LD29750PE0

Technical Specifications

• Model: 750
• Connection Size: 4 x 2 in
• Finish: Orange Enamel
• Length: 8.9 in
• Material: Ductile Iron
• Maximum End Load: 1550 lb
• Pressure Rating: 350 psi
• Temperature Rating: -30 to 230 degrees F
• Material Specifications: ASTM A536, Grade 65-45-12
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
• Applications: For use with OGS roll grooved and cut grooved pipe, as well as OGS grooved fittings, valves, and accessories
