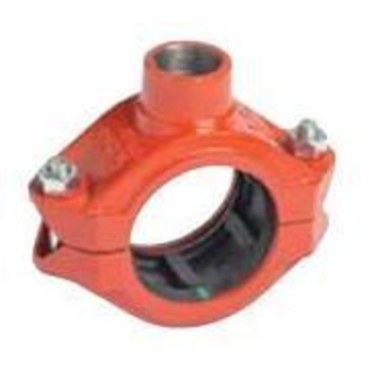

Victaulic LD20072PEF Style 72 Orange Enamel Coated Ductile Iron Outlet Coupling With Grade E Gasket, 4 X 3/4 IN, FNPT

Product Description

The Victaulic LD20072PEF is a ductile iron outlet coupling designed for robust connections in fire protection systems. This coupling features a nominal size of four inches by three-quarters inches and includes a three-quarter inch female pipe thread outlet. Its construction meets ASTM A536 standards and is rated for a maximum pressure of five hundred psi.

• Connection size of 4 x 3/4 inches
• Rated for temperatures between -30 to 230 degrees Fahrenheit
• Constructed from ASTM A536 ductile iron

Product Highlights

The LD20072PEF is ideal for installation in various plumbing and fire protection applications, ensuring a reliable and durable connection.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: LD20072PEF

Technical Specifications

• Length: 8.38 inches
• Material: Ductile Iron
• Finish: Orange Enamel
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 degrees Fahrenheit
• Outside Diameter: 4-1/2 x 1.05 inches
• Connection Type: FNPT
• Material Specifications: ASTM A536, Grade 65-45-12
