Victaulic LC49750PE0 Coupling Flexible 3 x 2-1/2 Inch Ductile Iron 750 E Gasket

Product Description

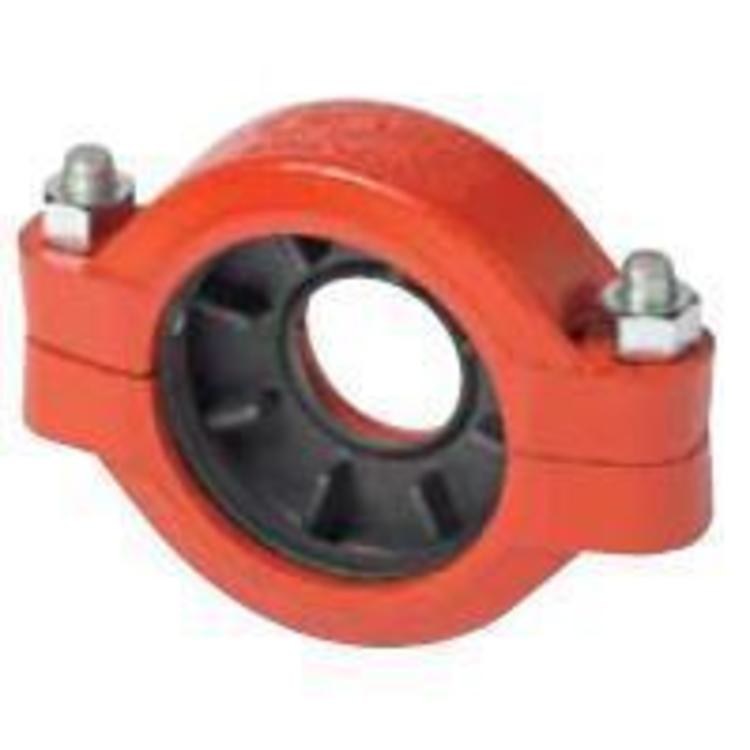

The Victaulic LC49750PE0 is a flexible coupling, 3 x 2-1/2 inch, made of ductile iron 750 with an E gasket. This coupling connects pipes, valves, and fittings. It is designed to join OGS roll grooved and cut grooved pipe, as well as OGS grooved fittings, valves and accessories.

• Flexible coupling
• Ductile iron construction
• Connects pipes, valves, and fittings

Product Highlights

This Victaulic coupling eliminates the need for two couplings and a reducing fitting, offering a direct reduction on piping runs.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: LC49750PE0

Technical Specifications

• Brand: Victaulic
• Product Type: Flexible
• Size: 3x2-1/2IN
• Material: Ductile Iron
• Part Number: 750
• Finish: Orange Enamel
• Temperature Rating: -30 to 230 deg F
• Standard: ASTM A-536
• Bolt Size: 1/2x2-3/4IN
• Gasket Type: E
• Gasket Material: EPDM
• Application: Connecting Pipes, Valves, and Fittings
• Pressure Rating: 500 psi
• Length: 7.13 in
• Series: 750
• End Style: Grooved
• Fitting/Connector Type: Reducing Coupling
• Nominal Size: 3 x 2-1/2 In
• Material Specifications: ASTM A536, Grade 65-45-12
• Maximum End Load: 3250 lb
• Model: 750
• Connection Size: 3 x 2-1/2 in
• Connection Type: Grooved|Grooved
• Additional Information: EPDM Gasket
• For Use With: Original Groove System, Roll Grooved and Cut Grooved Pipe, OGS Grooved Fittings, Valves and Accessories
• Material Construction: Iron
