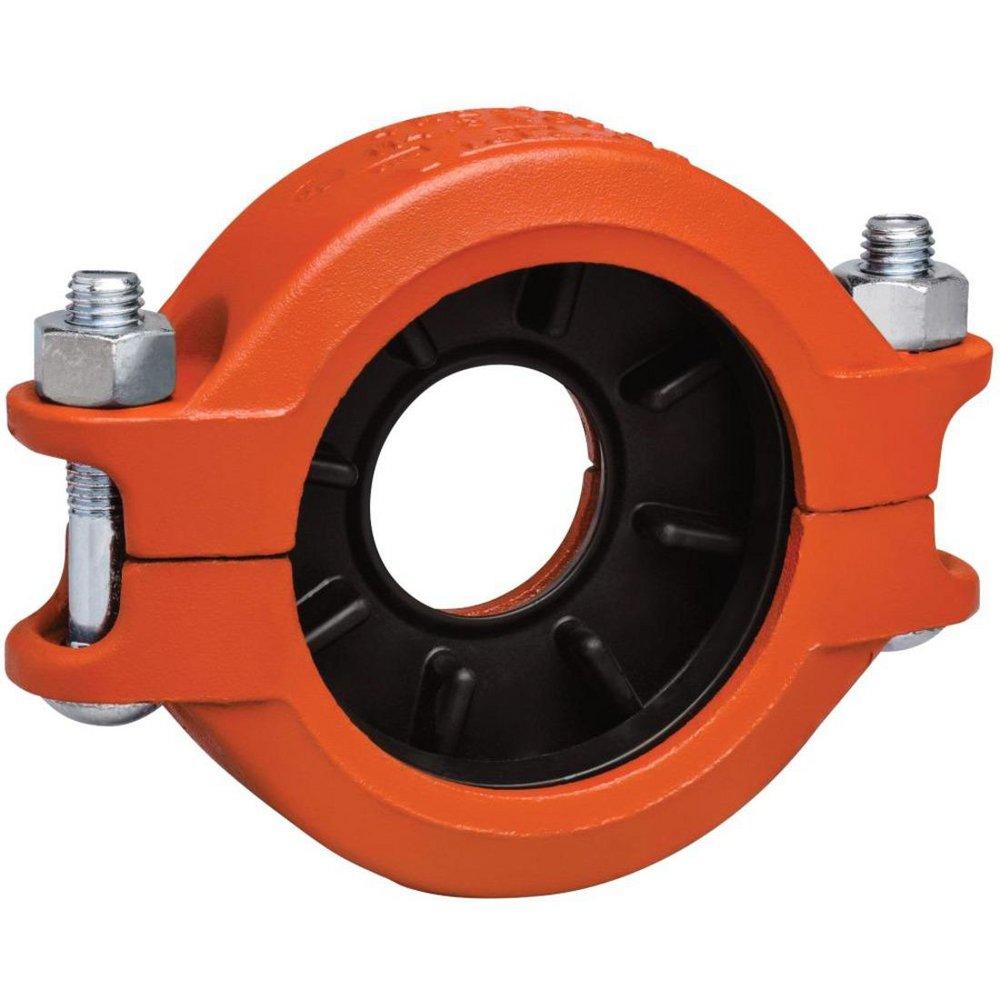

Victaulic LC07750GE0 FireLock Style 750 2-1/2 x 2 in Enamel Grooved Reducing Coupling

Product Description

The Victaulic FireLock Style 750 Grooved Reducing Coupling with MPN LC07750GE0 is designed for use in various piping systems. It connects two different pipe sizes without the need for multiple fittings. The coupling provides a robust joining method, ensuring a leak-free connection.

• Sizes available: two and one-half inches to two inches
• Can handle pressures up to five hundred psi
• Replaces two couplings and a reducing fitting

Product Highlights

Ideal for use with OGS roll grooved and cut grooved pipe. The coupling features a Grade E EPDM gasket and is suitable for a variety of applications.

Product Information

Standard Information

• Brand: Victaulic
• MPN: LC07750GE0

Technical Specifications

• Connection Size: 2-1/2 x 2 in
• Finish: Hot Dipped Galvanized
• Item Name: Grooved Reducing Coupling with Grade E EPDM Gasket
• Length: 5.93 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 2215 lb
• Model: 750
• Pressure Rating: 500 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
• Applications: For use with OGS roll grooved and cut grooved pipe, as well as OGS grooved fittings, valves, and accessories
