Product Description

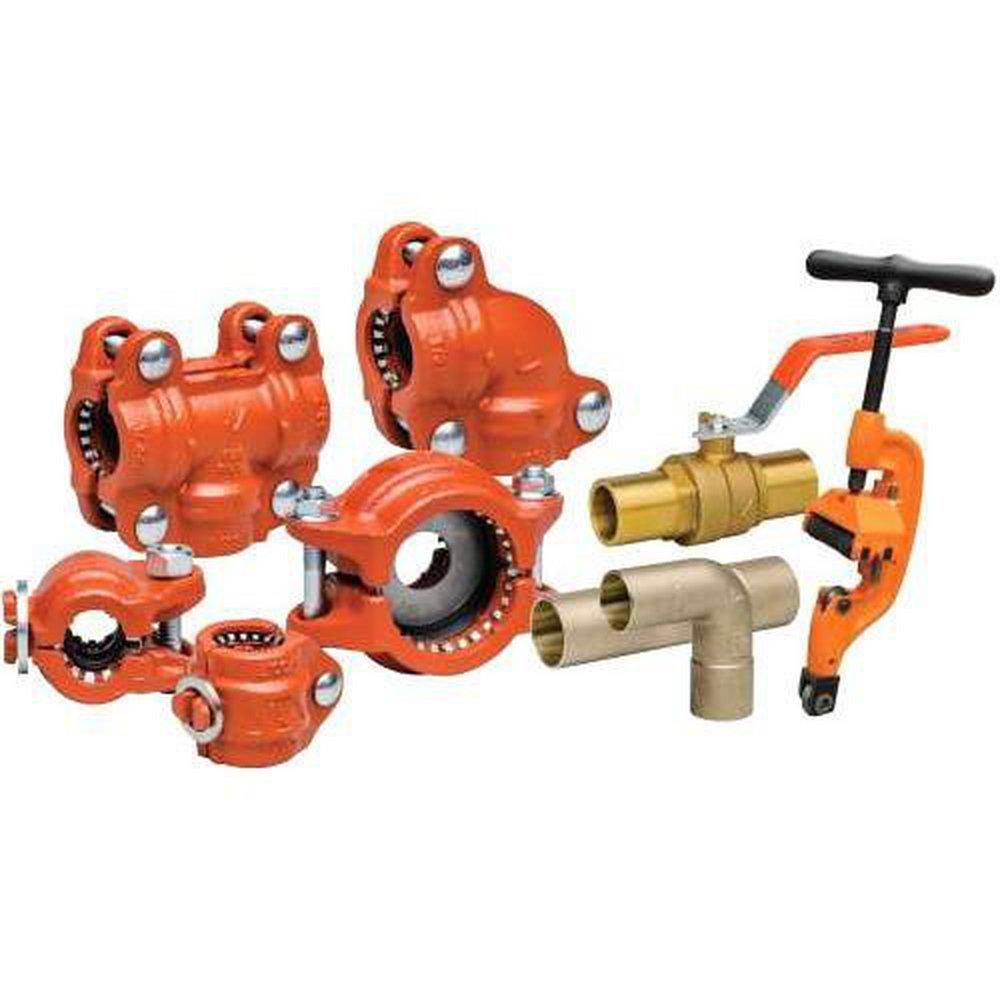

The Victaulic LB31P50PE0 QuickVic Installation-Ready Style P50 is designed for use in small diameter carbon steel piping systems. It is a reducing coupling that provides an efficient solution for piping connections.
- Connection Size: one and one-half by one and one-quarter inches
- Material: Ductile Iron
- Pressure Rating: up to three hundred psi
Product Highlights
This product includes patented technology ensuring ease of installation and secure fittings. It is ideal for both new installations and repairs in carbon steel piping systems.
Product Information
Standard Information
-
Brand: Victaulic
-
MPN: LB31P50PE0
Technical Specifications
-
Connection Size: one and one-half x one and one-quarter inches
-
Connection Type: Plain End
-
Finish: Orange Enamel
-
Length: four point nine inches
-
Material: Ductile Iron
-
Maximum End Load: eight hundred fifty lb
-
Model: P50
-
Outside Diameter: one point nine x one point six six inches
-
Pressure Rating: three hundred psi
-
Sub Brand: QuickVic SD, Installation-Ready
-
Temperature Rating: negative thirty to two hundred fifty degrees Fahrenheit
-
Standards/Certifications: ASME B31.1, B31.3 and B31.9, LPCB approved, ISO 9001:2008
-
Applications: For use on carbon steel pipe conforming to ASTM A53, ASTM A106, ASTM A135 or schedule ten through eighty
