Product Description

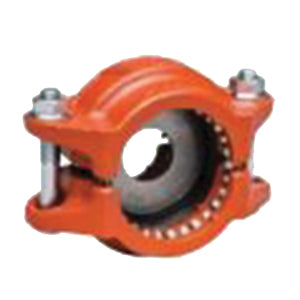

The Victaulic LB28P50PE0 is a QuickVic SD Installation-Ready P50 reducing coupling. This product features a grade EHP EPDM gasket and is suitable for pipe connections of one and a half inches by three-quarters of an inch with plain ends.
- Installation ready with patented technology
- Features leak-If-not-tightened technology
- Made of ductile iron with an orange enamel finish
Product Highlights
This coupling is designed for use in carbon steel piping systems, offering an economical solution for pipe joining tasks.
Product Information
Standard Information
-
Brand: Victaulic
-
Manufacturer: Victaulic
Technical Specifications
-
Connection Size: 1-1/2 x 3/4 in
-
Connection Type: Plain End
-
Finish: Orange Enamel
-
Item Name: Reducing Coupling with Grade EHP EPDM Gasket
-
Length: 4.9 in
-
Material Specifications: ASTM A536, Grade 65-45-12
-
Material: Ductile Iron
-
Maximum End Load: 850 lb
-
Model: P50
-
Outside Diameter: 1.9 x 1.05 in
-
Pressure Rating: 300 psi
-
Sub Brand: QuickVic SD, Installation-Ready
-
Temperature Rating: -30 to 250 deg F
-
Standards/Certifications: ASME B31.1, B31.3 and B31.9, LPCB approved, ISO 9001:2008 standard
-
Applications: For use on carbon steel pipe conforming to ASTM A53, ASTM A106, ASTM A135 or schedule 10 through 80
