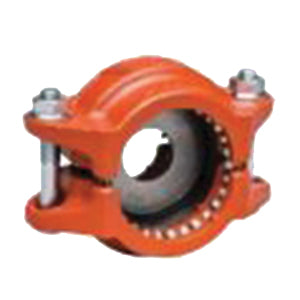

Victaulic LB05P50PE0 QuickVic SD Installation-Ready P50 Orange Enamel Ductile Iron Reducing Coupling with Grade EHP EPDM Gasket 1-1/4 x 1 in

Product Description

The Victaulic LB05P50PE0 is a QuickVic SD Installation-Ready reducing coupling made from ductile iron. It features a connection size of one and one-quarter by one inch with a plain end. This coupling is designed to provide a reliable solution for joining carbon steel piping systems.

• Most economical and efficient pipe joining solution for carbon steel piping systems.
• Designed with a patented Leak-If-Not-Tightened technology.
• Includes a grade EHP EPDM gasket for secure sealing.

Product Highlights

This coupling offers ease of installation and reliable performance for various applications in piping systems.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 1-1/4 x 1 in
• Connection Type: Plain End
• Finish: Orange Enamel
• Material: Ductile Iron
• Model: P50
• Pressure Rating: 300 psi
• Maximum End Load: 650 lb
• Temperature Rating: -30 to 250 deg F
• Standards/Certifications: ASME B31.1, B31.3 and B31.9, LPCB approved, ISO 9001:2008 standard
• Applications: For use on carbon steel pipe conforming to ASTM A53, ASTM A106, ASTM A135 or schedule 10 through 80.
