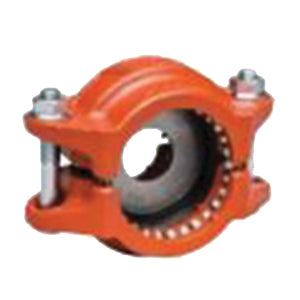

Victaulic LA83P50PE0 QuickVic Style P50 1 x 3/4 in. Orange Enamel Reducing Coupling VLA83P50PE0

Product Description

The Victaulic LA83P50PE0 is a QuickVic Style P50 reducing coupling designed for carbon steel piping systems. This coupling features a one inch by three-fourths inch connection size with a plain end connection type. It is built from ductile iron and is finished in orange enamel to ensure visibility.

• Most economical option for joining small diameter piping
• Features patented QuickVic Installation-Ready technology
• Includes a grade EHP EPDM gasket

Product Highlights

This reducing coupling provides a reliable solution for connecting carbon steel pipes. It is equipped with technology to prevent leaks until properly secured during installation.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 1 x 3/4 in
• Connection Type: Plain End
• Finish: Orange Enamel
• Length: 3.96 in
• Material: Ductile Iron
• Pressure Rating: 300 psi
• Maximum End Load: 450 lb
• Temperature Rating: -30 to 250 deg F
• Standards/Certifications: ASME B31.1, B31.3 and B31.9, LPCB approved, ISO 9001:2008 standard
• Applications: Suitable for carbon steel pipe conforming to ASTM A53, ASTM A106, ASTM A135 or schedule 10 thorough 80
