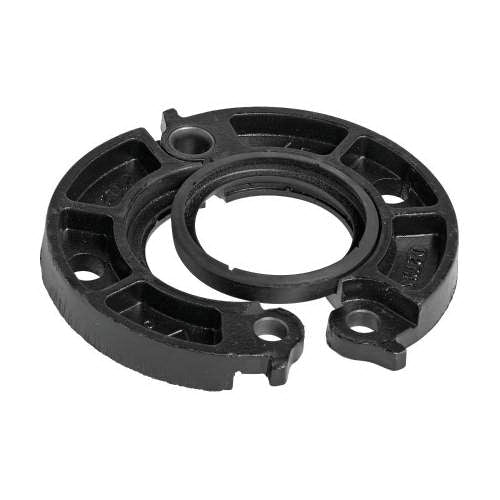

Victaulic L120741PE0 Vic-Flange 741 Flange Adapter 12 in Replacement MPN

Product Description

The Victaulic L120741PE0 is a flange adapter designed for the transition from flanged to grooved piping systems. This product features a nominal size of twelve inches and is built from ductile iron. The flange adapter is painted with black enamel for durability and resistance to corrosion.

• Directly connects ANSI class 125 and 150 components to grooved systems.
• Includes a Grade E EPDM gasket for reliable sealing.
• Rated for maximum pressures of 300 psi.

Product Highlights

This flange adapter is suitable for use in various piping applications, offering seamless integration between different connection types.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L120741PE0

Technical Specifications

• Connection Size: 12 inches
• Connection Type: Grooved
• Maximum End Load: 38,285 lb
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 deg F
• Thickness: 1.25 inches
• Actual Outside Diameter: 12.75 inches
• Bolt Circle Diameter: 17 inches
• Bolt Size: 7/8 x 4 inches
• Material: Ductile Iron
• Finish: Black Enamel
• Model: 741
• Sub Brand: Vic-Flange
• Number of Bolts: 12
