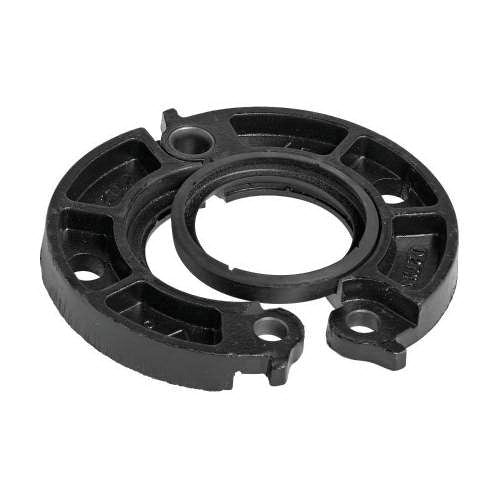

Victaulic L100741GE0 Vic-Flange 741 Hot Dipped Galvanized Ductile Iron Flange Adapter with Grade E EPDM Gasket 10 in

Product Description

The Victaulic L100741GE0 is a flange adapter designed for connecting flanged piping systems to grooved piping systems. This product is made from ductile iron and features a hot dipped galvanized finish for durability and reliability.

• Constructed from ductile iron with a hot dipped galvanized finish.
• Designed to transition from flanged to grooved piping systems.
• Certified by various standards including UL, FM, and LPCB.

Product Highlights

This flange adapter is suitable for a wide range of applications in industrial and commercial settings. Its sturdy construction ensures a secure connection that can handle high pressures.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L100741GE0

Technical Specifications

• Actual Outside Diameter: 10-3/4 in
• Bolt Circle Diameter: 14-1/4 in
• Bolt Size: 7/8 x 4 in
• Connection Size: 10 in
• Connection Type: Grooved
• Finish: Hot Dipped Galvanized
• Material: Ductile Iron
• Maximum End Load: 27215 lb
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 deg F
• Thickness: 1-1/4 in
• Number of Bolts: 12
