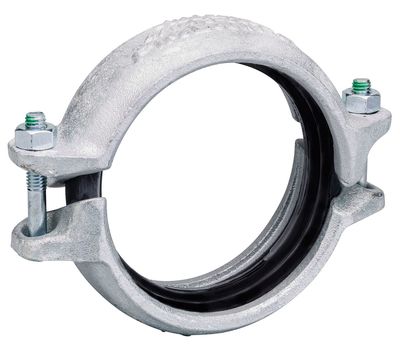

Victaulic L10009NGE0 FireLock EZ 10 in Galvanized Ductile Iron Rigid Coupling Style 009N

Product Description

The Victaulic L10009NGE0 FireLock EZ is a rigid coupling designed for joining carbon steel pipe with grooved ends. This coupling measures ten inches and allows for a stable connection while restricting both axial and angular movement. It comes equipped with a Grade E EPDM type A Vic Plus pre-lubricated gasket and robust carbon steel oval neck track bolts that comply with ASTM A449 and ISO 898 specifications.

• Joins carbon steel pipe with grooved ends
• Provides a rigid pipe joint designed to restrict axial or angular movement
• Includes gasket grade E EPDM type A Vic Plus pre-lubricated gasket

Product Highlights

Ideal for fire protection systems and industrial applications requiring reliable pipe connections.

Product Information

Standard Information

• Catalog Number: L10009NGE0
• Finish: Hot Dipped Galvanized

Technical Specifications

• Includes: Bolts, Nuts, and EPDM Gasket
• Length: 17 inches
• Material: Ductile Iron
• Maximum Pressure Rating: 300 PSI
• Minimum Temperature Rating: -40 degrees Fahrenheit
• Selling Size: 10 inches
• Specifications Met: ASTM A536, Grade 65-45-12, cULus Listed, FM Approved, VdS Approved, LPCB Approved, CE EN 10311 Regulation EU No. 305/2011
