Product Description

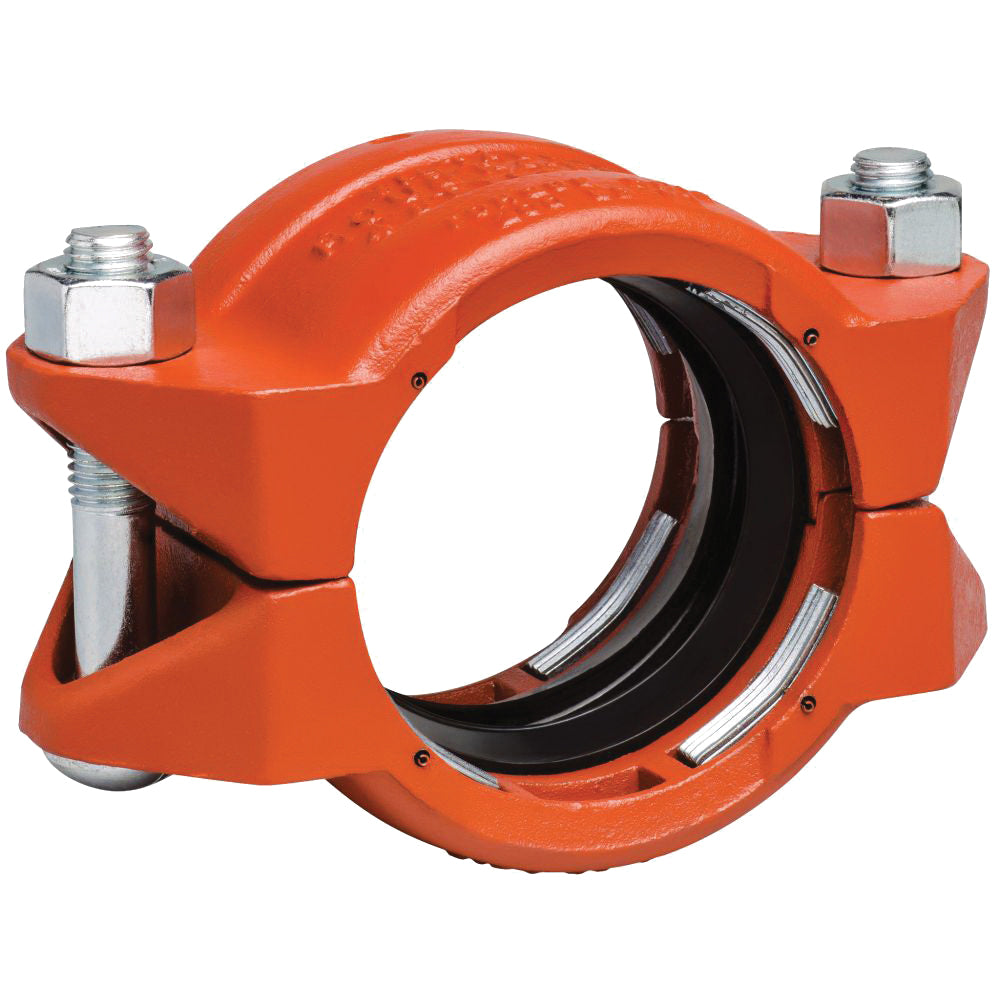

The Victaulic L100099PE0 is a Roust-A-Bout coupling designed for use with plain and beveled end pipes. This coupling features a ten inch connection size and is made from ductile iron, providing strength and durability in various applications. It is specifically used for joining plain and beveled end pipes, including schedule 80 steel pipes and Victaulic plain end fittings. The coupling is not suitable for plastic pipes or pipes with certain linings.
- Connection Size: 10 inches
- Material: Ductile Iron
- Pressure Rating: 250 psi
Product Highlights
This coupling features heavy jaws to secure the pipe and painted housing. Gasket material is grade E EPDM, which provides reliable sealing. The product is cULus listed for safety and compliance.
Product Information
Standard Information
-
Brand: Victaulic
-
Part Number: L100099PE0
Technical Specifications
-
Connection Type: Plain End
-
Finish: Orange Enamel
-
Length: 16.38 inches
-
Maximum End Load: 22700 lb
-
Outside Diameter: 10-3/4 inches
-
Temperature Rating: -30 to 230 degrees F
-
Material Specifications: ASTM A536, Grade 65-45-12
-
Standards/Certifications: cULus listed
-
Applications: For joining plain and beveled end pipe and Victaulic plain end fittings
