Product Description

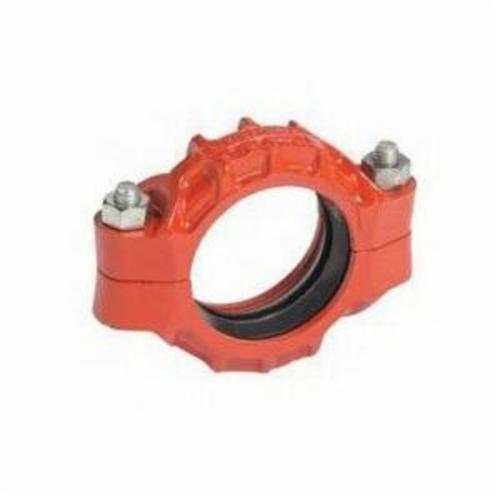

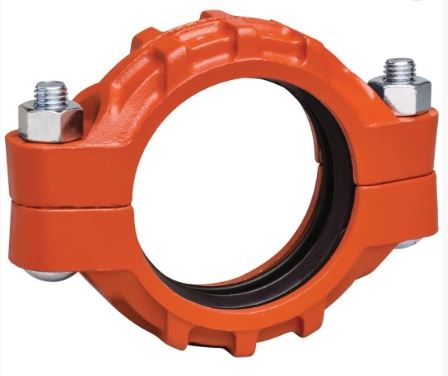

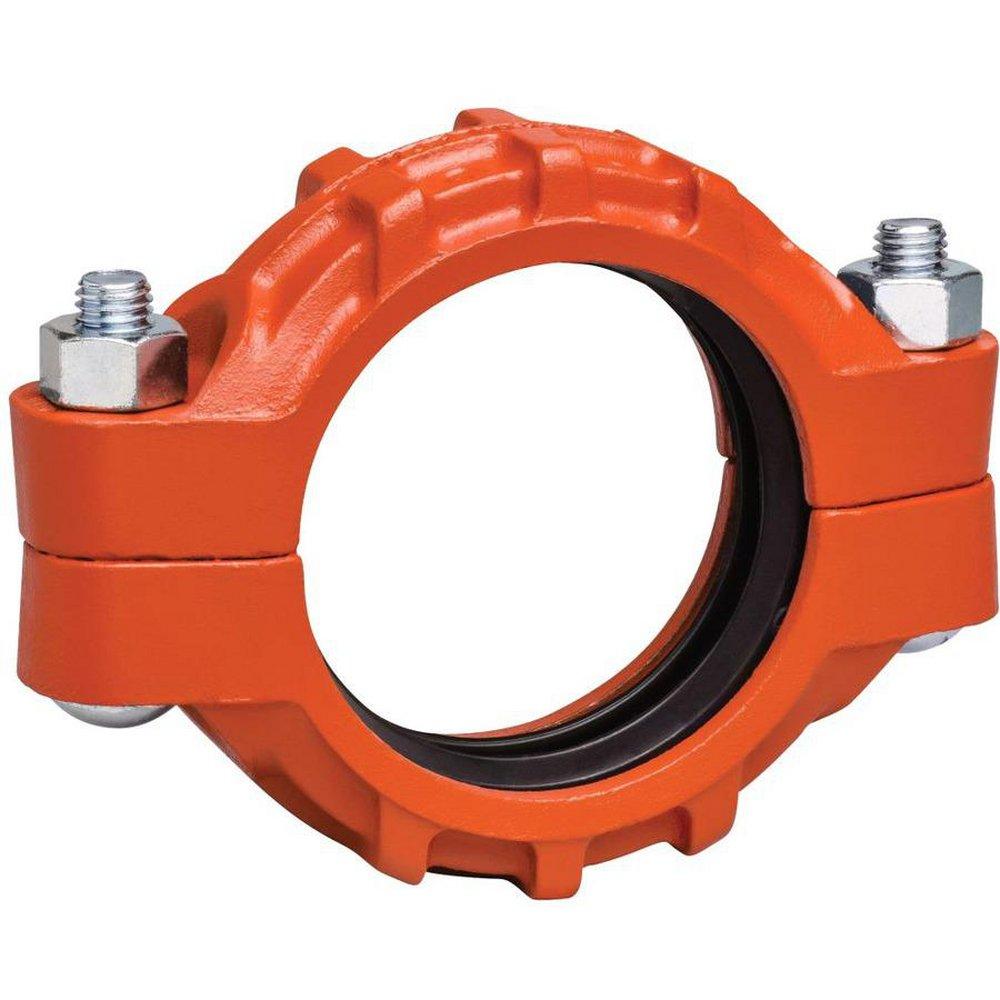

The VICTAULIC L100077PE0 FireLock™ Style 77 is a 10 inch grooved coupling. It features a cross-ribbed, two-piece housing construction and is made of ductile iron with an orange enamel finish. This flexible coupling joins standard roll grooved and cut grooved pipe, as well as grooved fittings, valves, and accessories.
- Flexible design allows for expansion, contraction, and deflection.
- Ductile iron construction for durability.
- Suitable for connecting pipes, valves, and fittings.
Product Highlights
The Victaulic FireLock™ Style 77 coupling provides a flexible pipe joint and accommodates pressures ranging from full vacuum up to 1000 psi.
Product Information
Standard Information
-
Brand: VICTAULIC
-
Manufacturer Part Number: L100077PE0
-
Country of Origin: Domestic
Technical Specifications
-
Size: 10IN
-
Material: Ductile Iron
-
Finish: Orange Enamel
-
Temperature: -30 to 230DEG F
-
Standard: ASTM A-536
-
Bolt Size: 1x6IN
-
Gasket Type: E
-
Gasket Color: Green Stripe
-
Gasket Material: EPDM
-
Application: Connecting Pipes, Valves, and Fittings
-
Connection Size: 10 in
-
Item Name: Grooved Flexible Coupling with Grade "E" EPDM Gasket
-
Length: 17.13 in
-
Material Specifications: ASTM A536, Grade 65-45-12
-
Maximum End Load: 73280 lb
-
Model: 77
-
Outside Diameter: 10-3/4 in
-
Pressure Rating: 800 psi
-
Type: Standard Flexible
-
End Style: Grooved
-
Series: 77 Series
-
ANSI: ANSI 61, ANSI 372
-
ASME: ASME B31.1, ASME B31.9
-
ASTM: ASTM A-395, ASTM A-536
-
Coating: Orange Enamel
-
Collection: FireLock™ Style 77
-
End Connection 1: Grooved
-
End Connection 2: Grooved
-
End Connections: Grooved
-
FM Approved: No
-
Fitting Size 1: 10 in
-
Fitting Size 2: 10 in
-
Fitting Sizes: 10 in
-
Fitting Type: Coupling
-
ISO: ISO 898-1 Class 9.8, ISO 898-1 Class 8.8
-
Material Type: EPDM
-
Maximum Temperature: 230
-
NSF: NSF 61, NSF 372
-
NSF Certified: Yes
-
Origin: Domestic
-
Pressure - High: 800
-
UL Listed: Yes
-
Series/Model: Style 77
-
Nominal Size: 10 IN
-
Connection Type: Grooved
-
Material Standard: ASTM A536 Grade 65-45-12
-
Finish/Color: Orange Enamel Painted
-
Maximum Pressure: 800 PSI
-
Industry Standards: UL And CUL Listed, FM And CTP Approved
-
Domestic/Import: Import
-
Additional Specifications: End Load: 73280 LB Maximum
