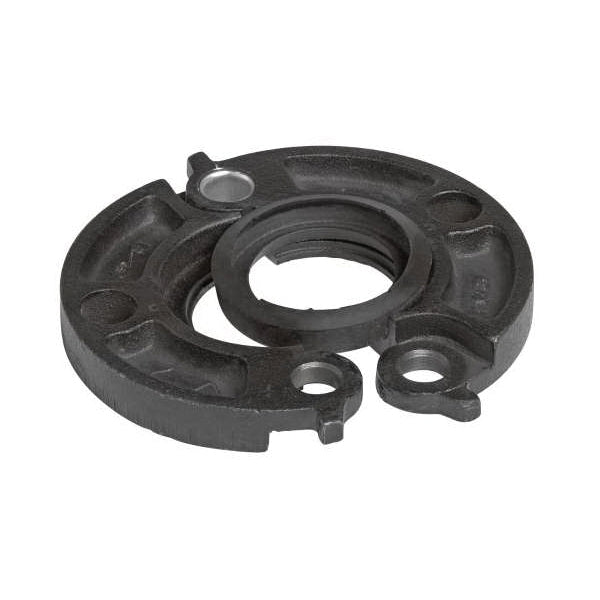

Victaulic L080744PE0 FireLock 744 Black Enamel Ductile Iron Flange Adapter with Grade E EPDM Type-A Vic-Plus Gasket 8 in

Product Description

The Victaulic FireLock 744 flange adapter, model L080744PE0, is a durable piece made of ductile iron. This flange adapter is designed to integrate flanged components with ANSI Class 125 or Class 150 bolt hole patterns into a grooved pipe system. The product features easy handling due to its hinged design and integral end tabs. It includes small teeth inside the key shoulder to prevent rotation. Use it for fire protection systems only.

• Designed for ANSI Class 125 and 150 bolt patterns.
• Incorporates integral end tabs for easier assembly.
• UL and ULC listed, FM approved for fire protection.

Product Highlights

The FireLock flange adapter simplifies the connection of fire protection systems while ensuring reliable performance.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 744
• Connection Size: 8 in
• Material: Ductile Iron
• Finish: Black Enamel
• Thickness: 1.13 in
• Maximum End Load: 10219 lb
• Pressure Rating: 175 psi
• Number of Bolts: 8
• Bolt Size: 3/4 x 3-1/2 in
• Bolt Circle Diameter: 11-3/4 in
