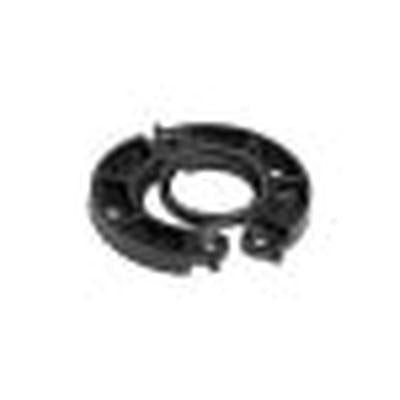

Victaulic L080741PT0 Vic-Flange 741 Black Enamel Ductile Iron Flange Adapter with Grade T Nitrile Gasket 8 in

Product Description

The Victaulic L080741PT0 is a reliable flange adapter designed for transitioning from flanged to grooved piping systems. This product features a sturdy construction made from ductile iron and is coated with black enamel for enhanced durability. The adapter includes a Grade T nitrile gasket, ensuring a secure fit.

• ANSI class 125 and 150 compliant
• UL and ULC listed, FM, VDS and LPCB approved
• Designed for use in various piping applications

Product Highlights

This flange adapter is suitable for a variety of industrial and commercial piping systems, providing effective sealing and support.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 741
• Material: Ductile Iron
• Size: 8 in
• Finish: Black Enamel
• Pressure Rating: 300 psi
• Temperature Rating: 20 - 180 deg F
• Actual Outside Diameter: 8-5/8 in
• Bolt Circle Diameter: 11-3/4 in
• Connection Type: Grooved
• Thickness: 1.13 in
• Maximum End Load: 17500 lb
• Number of Bolts: 8
