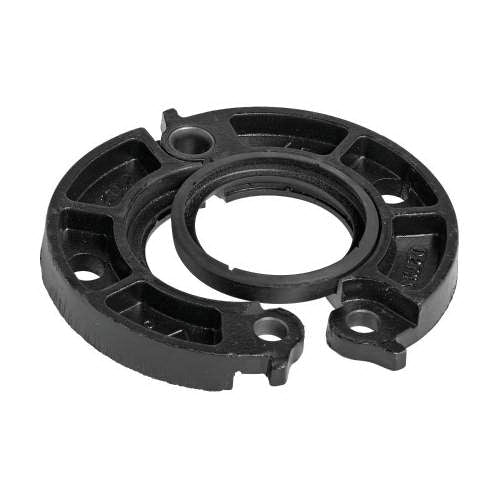

VICTAULIC L080741PE0 Vic-Flange Adapter 8 Inch - Replacement VI741E.8

Product Description

The Victaulic L080741PE0 is a ductile iron flange adapter designed to efficiently transition from flanged to grooved piping systems. This adapter includes a Grade 'E' EPDM gasket ensuring robust sealing and resistance against weathering conditions.

• Compatible with ANSI class 125 and 150, and more.
• UL and ULC listed, complies with multiple certifications.
• Pressure rated at 300 psi, suitable for various industrial applications.

Product Information

Engineered from high-grade ductile iron, this flange adapter features a black enamel finish, enhancing its corrosion resistance and durability. Its grooved design allows for straightforward installation, reducing setup time and labor costs.

Technical Specifications

• Bolt Size: 3/4 x 3-1/2 inches
• Connection Size: 8 inches
• Outside Diameter: 14-3/4 inches
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 degrees Fahrenheit
• Material Specifications: ASTM A536, Grade 65-45-12
