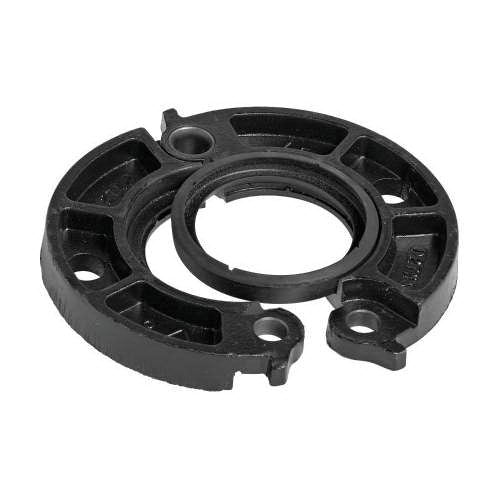

Victaulic L080741GE0 Vic-Flange Adapter 8 in - Flanged x Groove

Product Description

The Victaulic L080741GE0 is a reliable flange adapter designed for transitioning from flanged to grooved piping systems. Fabricated with ductile iron and protected with a hot dipped galvanized finish, this adapter meets stringent standards and certifications.

• Compatible with ANSI class 125 and 150 components
• Pressure rated for 300 psi
• UL and ULC listed, FM, VDS, LPCB approved

Product Highlights

Ideal for various piping applications where durable connections are necessary.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: Vic-Flange

Technical Specifications

• Actual Outside Diameter: 8-5/8 in
• Bolt Circle Diameter: 11-3/4 in
• Bolt Size: 3/4 x 3-1/2 in
• Connection Size: 8 in
• Connection Type: Grooved
• Finish: Hot Dipped Galvanized
• Material: Ductile Iron
• Maximum End Load: 17500 lb
• Model: 741
• Number of Bolts: 8
• Outside Diameter: 14-3/4 in
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 230 deg F
• Thickness: 1.13 in
