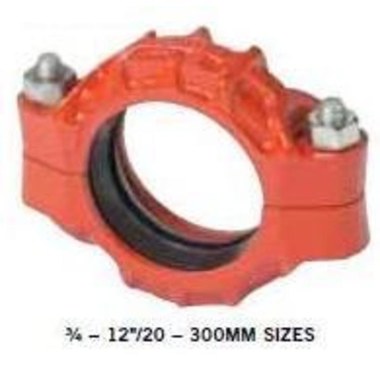

Victaulic L080077PE0 FireLock Style 77 8 in Orange Enamel Grooved Coupling

Product Description

The Victaulic L080077PE0 is a standard grooved flexible coupling designed for use with pipes featuring the Victaulic OGS groove profile. This product provides reliable connections for various piping applications.

• Connection size of eight inches.
• Constructed from ductile iron with an orange enamel finish.
• Rated for pressures up to 800 psi and temperature range of negative thirty to two hundred thirty degrees Fahrenheit.

Product Highlights

Designed for flexibility, this coupling accommodates expansion and contraction, making it ideal for changing pipe layouts.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L080077PE0

Technical Specifications

• Connection Size: 8 in
• Material: Ductile Iron
• Pressure Rating: 800 psi
• Temperature Rating: -30 to 230 deg F
• Maximum End Load: 46740 lb
• Outside Diameter: 8-5/8 in
• Length: 14-3/4 in
• Gasket Material: Grade E EPDM
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Finish: Orange Enamel
