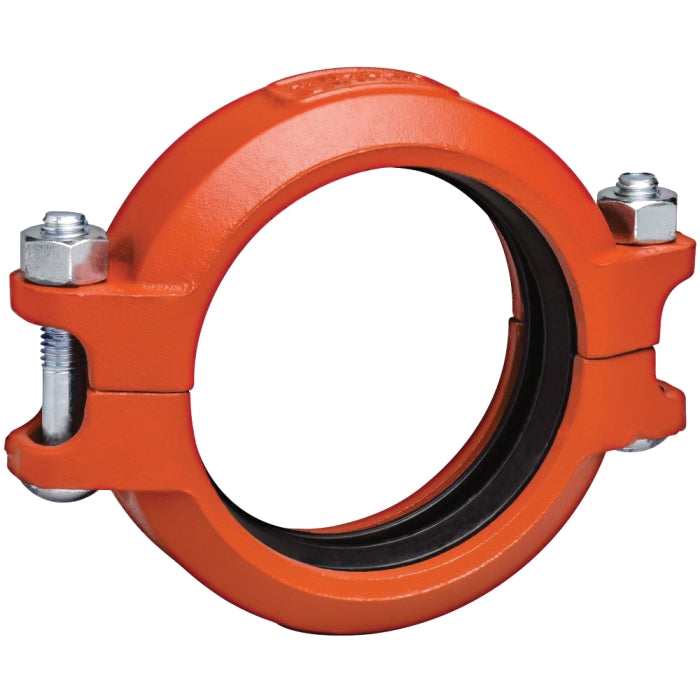

Victaulic L080075PE0 Grooved Flexible Coupling 8 in

Product Description

The Victaulic L080075PE0 is a lightweight grooved flexible coupling made from ductile iron. This coupling is designed for use with standard roll grooved and cut grooved pipes, along with grooved fittings and valves. Its ability to accommodate pressures up to 500 psi makes it suitable for various applications.

• Accommodates full vacuum pressures up to 500 psi
• Grade E EPDM gasket provides reliable sealing
• Lightweight construction, making it easier to handle

Product Highlights

The L080075PE0 offers flexibility for expansion and contraction in piping systems, making it ideal for installations in HVAC and plumbing projects.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L080075PE0

Technical Specifications

• Connection Size: 8 in
• Finish: Orange Enamel
• Item Name: Grooved Flexible Coupling with Grade E EPDM Gasket
• Length: 13.97 in
• Material: Ductile Iron
• Maximum End Load: 26280 lb
• Model: 75
• Outside Diameter: 8-5/8 in
• Pressure Rating: 450 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
