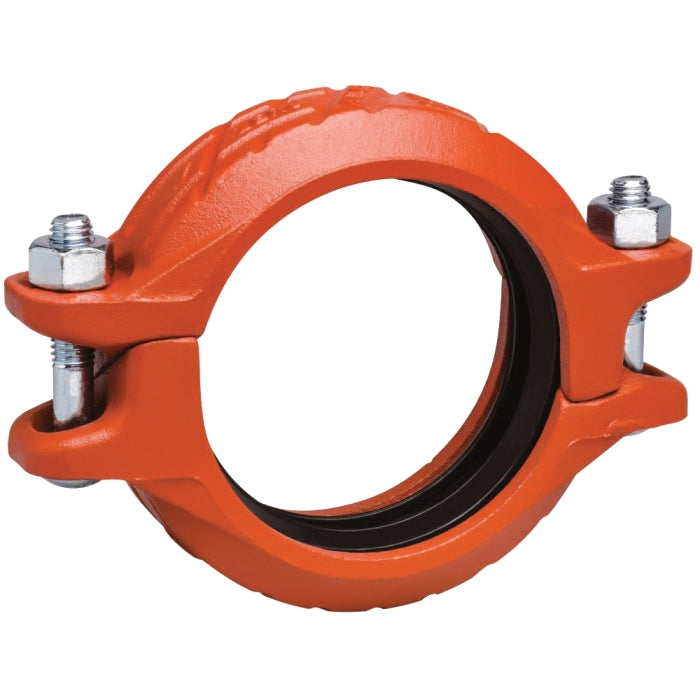

Victaulic L080007PE0 Ductile Iron Grooved Rigid Coupling 8 in

Product Description

The Victaulic L080007PE0 is an 8-inch ductile iron grooved rigid coupling designed for reliable connections in various piping systems. It is made with high-quality materials, ensuring long-lasting performance in demanding environments.

• Accommodates pressures from full vacuum up to 750 psi
• Meets support and hanging requirements of ASME B31.1 and B31.9
• Includes a Grade E EPDM gasket for enhanced sealing

Product Highlights

This coupling is suitable for connecting OGS roll grooved pipe and cut grooved pipe in plumbing, heating, and fire protection systems.

Product Information

Standard Information

• Brand: Victaulic
• Part Number: L080007PE0

Technical Specifications

• Model: 07
• Connection Size: 8 in
• Length: 13.74 in
• Material: Ductile Iron
• Finish: Orange Enamel
• Maximum End Load: 35000 lb
• Pressure Rating: 600 psi
• Temperature Rating: -30 to 230 deg F
• Standards/Certifications: cULus listed, FM, LPCB, VDS, CTP approved
