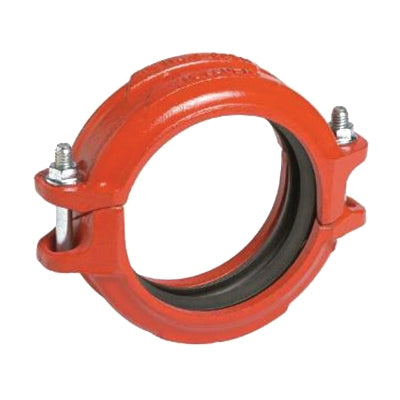

Victaulic L080005PE0 FireLock 005 Orange Enamel Ductile Iron Grooved Rigid Coupling 8 in

Product Description

The Victaulic L080005PE0 is a FireLock 005 rigid coupling made from ductile iron and coated with orange enamel. Designed specifically for fire protection services, this coupling ensures strong connections in various applications. The unique angle-pad design allows the housings to offset while clamping grooves for secure fittings.

• Unique angle pad design enhances rigidity
• Supports hanging as welded or threaded in compliance with NFPA 13
• Heat-treated plated carbon steel bolts meet ASTM standards

Product Highlights

This coupling is suitable for fire mains, valve connections, and long straight runs. The FireLock style 005 includes a Vic-Plus gasket system for durability and compatibility.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic
• Part Number: L080005PE0
• UPC: 688304296888

Technical Specifications

• Connection Size: 8 in
• Bolts: (2) 5/8 x 4-1/4 in
• Gasket: Grade E EPDM (type-A) Vic-Plus gasket system
• Standards/Certifications: cULus listed, FM, LPCB, VDS approved
• Applications: For use with fire protection services only
