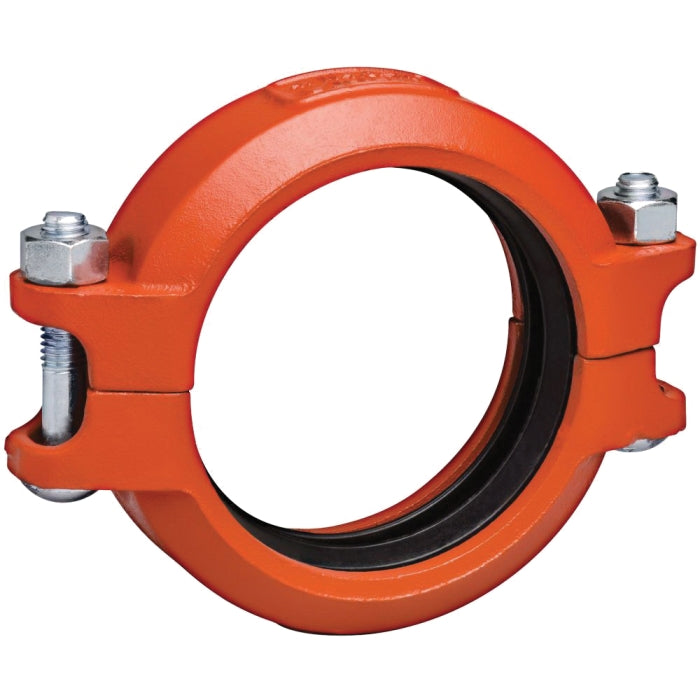

Victaulic L080004PE0 Grooved Flexible Coupling with Grade E EPDM Gasket 8 in

Product Description

The Victaulic L080004PE0 is a grooved flexible coupling designed for use in fire protection applications. It connects standard roll grooved and cut grooved pipes, facilitating secure joints.

• Lightweight design ensures easier handling
• Accommodates pressures from full vacuum up to 500 psi
• Provides flexibility for expansion and deflection

Product Highlights

This coupling is suitable for various fire protection fittings and includes a Grade E EPDM gasket.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Connection Size: 8 inches
• Finish: Orange Enamel
• Item Name: Grooved Flexible Coupling with Grade E EPDM Gasket
• Length: 13.97 inches
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Maximum End Load: 26280 pounds
• Model: 75/004
• Outside Diameter: 8-5/8 inches
• Pressure Rating: 450 psi
• Temperature Rating: -30 to 230 degrees Fahrenheit
