Victaulic L060905PE0 Refuse-To-Fuse Rigid Coupling, 6 in

Product Description

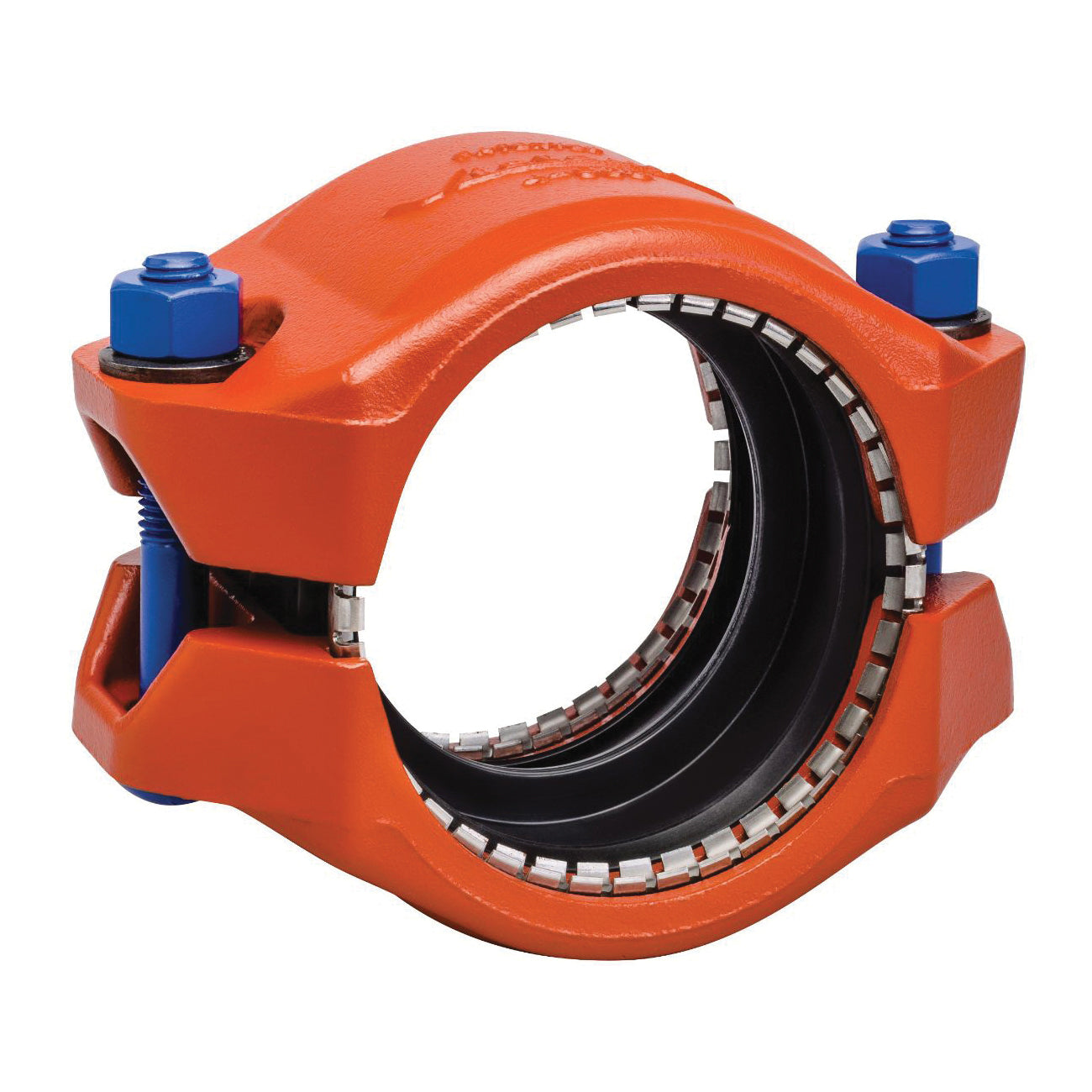

The VICTAULIC L060905PE0 Refuse-To-Fuse Rigid Coupling is designed for plain end HDPE pipe from DR7 to DR17. The coupling is a series 905 fitting with a 6 in nominal size and 4-3/4 in thickness. It has a ductile iron construction with an orange enamel finish.

• Designed for plain end HDPE pipe from DR7 to DR17
• Pressure rating meets or exceeds the performance capabilities of the pipe
• Installation-Ready design eliminates loose parts

Product Highlights

The Style 905 coupling is suitable for use with plain end HDPE pipe from SDR 7 to 17.

Product Information

Standard Information

• Brand: VICTAULIC
• Manufacturer Part Number: L060905PE0

Technical Specifications

• Finish: Orange Enamel
• Fitting/Connector Type: Coupling
• Hex Size: 3/4 in
• Material: Ductile Iron
• Nominal Size: 6 In
• Series: 905
• Thickness: 4-3/4 in
• Brand: Victaulic
• Coating: Orange Enamel
• End Connection: Grooved
• End Connection 1: Grooved
• End Connection 2: Grooved
• Fitting Size 1: 6 in.
• Fitting Size 2: 6 in.
• Fitting Sizes: 6 in. x 6 in.
• Length: 12-63/100 in.
• Material Type: HDPE
• Maximum Temperature: 230
• Pressure - Maximum: 333 psi
• Specifications - ANSI: ANSI 372;ANSI 61
• Specifications - ASME: ASME B18.21.1
• Specifications - ASTM: ASTM A-536 Grade 65-45-12;ASTM D-3035;ASTM D-3350;ASTM F-2619;ASTM F-714
• Specifications - FM Approved: Yes
• Specifications - ISO: ISO 898-1 Class 8.8;ISO 898-1 Class 9.8
• Specifications - NSF: NSF 372;NSF 61
• Specifications - NSF Certified: Yes
• Specifications - UL Listed: Yes
• Style Name: Refuse-to-Fuse Style 905
• Temperature Range: 30 to 230 Deg F
• Product Type: Plastic Couplings
