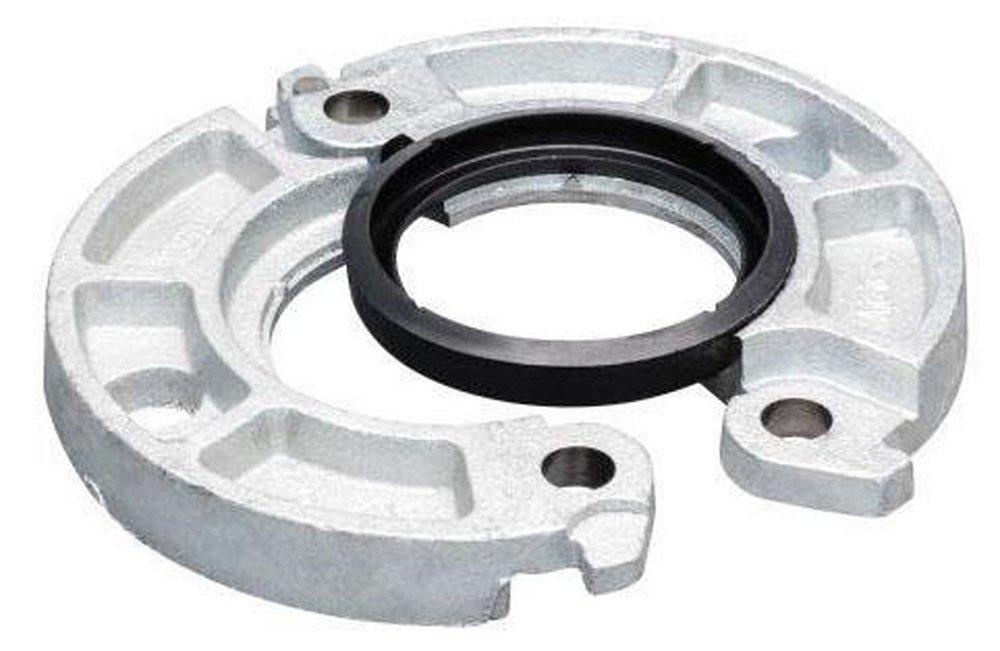

Victaulic L060744GE0 FireLock Style 744 6 in. Galvanized Flange Adapter with Grade E Gasket

Product Description

The Victaulic FireLock Style 744 Flange Adapter, with MPN L060744GE0, is designed specifically for fire protection systems. It fits into grooved pipe systems seamlessly, allowing easy connection with components that have ANSI Class 125 or Class 150 bolt hole patterns. With a diameter of six inches, this flange adapter is hot dipped galvanized and made from ductile iron, ensuring durability and reliable performance.

• Designed for use with grooved pipe systems
• Fits ANSI Class 125 and Class 150 bolt patterns
• Hot dipped galvanized construction

Product Highlights

This flange adapter streamlines the installation process for fire protection systems, reducing assembly time and minimizing errors.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 744
• Connection Size: 6 in
• Material: Ductile Iron
• Finish: Hot Dipped Galvanized
• Pressure Rating: 175 psi
• Maximum End Load: 6030 lb
• Number of Bolts: 8
• Bolt Circle Diameter: 9-1/2 in
• Bolt Size: 3/4 x 3-1/2 in
• Outside Diameter: 12 in
• Thickness: 1 in
• Standards/Certifications: UL and ULC listed, FM approved
• Applications: For use with fire protection systems
