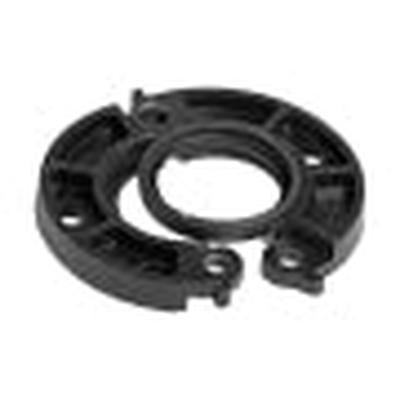

Victaulic L060741PT0 Vic-Flange® Style 741 6 in. Grooved Painted Flange Adapter with T-Gasket

Product Description

The Victaulic L060741PT0 is a Vic-Flange® Style 741 flange adapter. This product features a six-inch groove and a T-gasket. It is made from ductile iron with a black enamel finish.

• Designed for transitions between flanged and grooved piping systems.
• Complies with ANSI Class 125 and 150 standards.
• Pressure rated up to 300 psi.

Product Highlights

This flange adapter is essential for reliable connections in piping systems.

Product Information

Standard Information

• Brand: Victaulic
• Manufacturer: Victaulic

Technical Specifications

• Model: 741
• Connection Size: 6 inches
• Pressure Rating: 300 psi
• Material: Ductile Iron
• Finish: Black Enamel
• Outside Diameter: 12 inches
• Thickness: 1 inch
• Temperature Rating: 20 - 180 degrees F
• Number of Bolts: 8
• Max End Load: 10350 lb
• Gasket Material: Grade T Nitrile
• Standards/Certifications: UL and ULC listed, FM, VDS and LPCB approved
