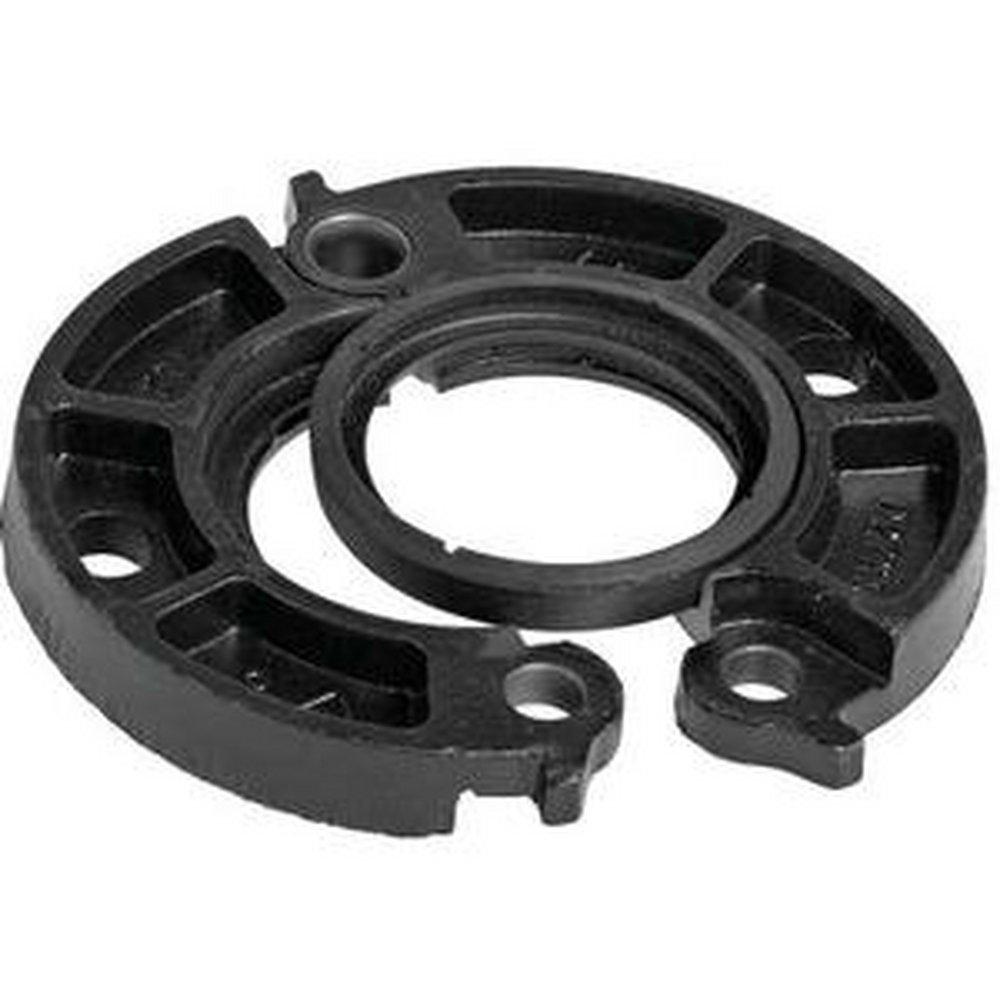

Victaulic L060741PE0 Vic-Flange Style 741 6 IN Grooved Painted Flange Adapter with E Gasket

Product Description

The Victaulic L060741PE0 is a flange adapter designed for transitioning from flanged to grooved piping systems. It features a nominal size of six inches and includes a Grade E EPDM gasket. This product is constructed from ductile iron with a black enamel finish.

• Compatible with ANSI class 125 and 150
• Pressure rated up to 300 psi
• Available for various pipe types including stainless steel and PVC

Product Highlights

This flange adapter effectively integrates ANSI class flanged components into grooved systems, providing a reliable connection in various applications.

Product Information

Standard Information

• Brand: Victaulic
• Model Number: L060741PE0

Technical Specifications

• Connection Size: 6 inches
• Maximum Pressure Rating: 300 psi
• Maximum End Load: 10350 lb
• Outside Diameter: 12 inches
• Thickness: 1 inch
• Material: Ductile Iron
• Finish: Black Enamel
• Temperature Rating: -30 to 230 deg F
