Victaulic L060607PE0 QuickVic 607 Copper Colored Alkyd Enamel Ductile Iron Grooved Rigid Coupling with Grade EHP Gasket 6 in

Product Description

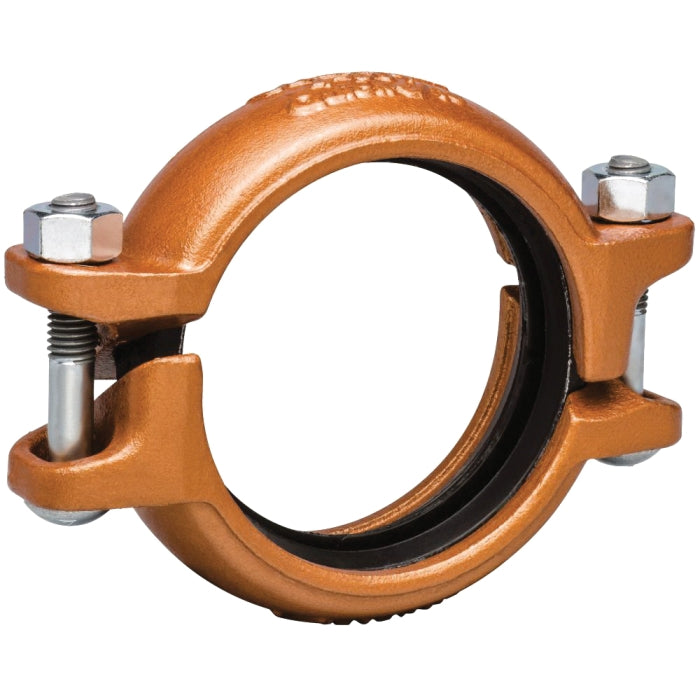

The Victaulic L060607PE0 is a QuickVic 607 ductile iron grooved rigid coupling designed for connecting hard-drawn copper tubing. This coupling can accommodate pipes ranging from two inches to eight inches in size. With a built-in Grade EHP gasket, it enables a reliable seal while allowing for easy installation without disassembling the bolts and other components.

• Installation ready design
• Accommodates pressures from full vacuum to 300 psi
• Rigid joint restricts axial and angular movement

Product Highlights

This product is ideal for use with K, L, M, or DWV copper tubing. It ensures a strong and durable connection suitable for various applications.

Product Information

Standard Information

• Brand: Victaulic
• Sub Brand: QuickVic

Technical Specifications

• Connection Size: 6 in
• Finish: Copper Colored Alkyd Enamel
• Item Name: Grooved Rigid Coupling with Grade EHP Gasket
• Length: 10.63 in
• Material Specifications: ASTM A536, Grade 65-45-12
• Material: Ductile Iron
• Model: 607
• Outside Diameter: 6-1/8 in
• Pressure Rating: 300 psi
• Temperature Rating: -30 to 250 deg F
