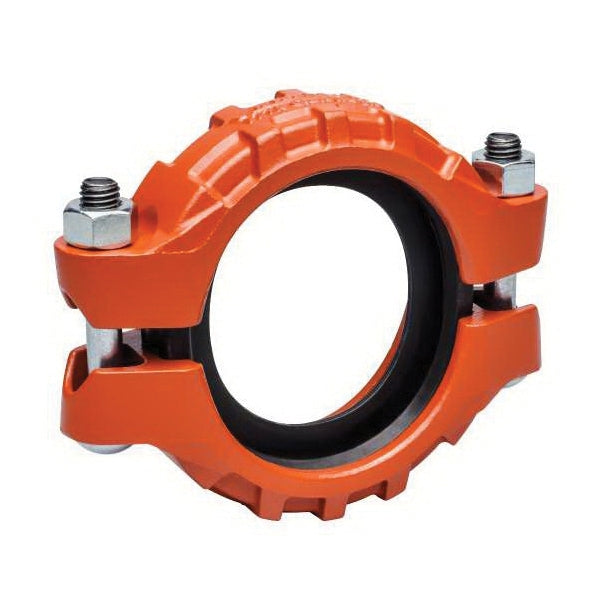

Victaulic L060177PEN QuickVic 6 inch Painted Grooved Coupling

Product Description

This Victaulic QuickVic painted grooved coupling, model L060177PEN, is designed for quick and secure pipe connections in ductile iron systems. Made from high-quality ductile iron, this coupling is suitable for systems handling pressures up to 1000 psi. Its orange enamel finish provides extra durability and corrosion resistance.

• Installation Ready technology for streamlined assembly
• Accommodates linear and angular movements
• Compatible with roll or cut grooved pipes, fittings, valves, and accessories

Product Highlights

This 6 inch flexible coupling enables significant time savings and reduced installation complexity. Its grooved design simplifies the alignment and allows for some movement within the pipe system, which can accommodate expansion, contraction, and other dynamic changes. Additionally, it adheres to rigorous standards, including cULus listing and FM approval, ensuring reliable performance in demanding applications.

Product Information

Standard Information

• Brand: Victaulic
• MPN: L060177PEN

Technical Specifications

• Material: Ductile Iron, ASTM A536, Grade 65-45-12
• Size: 6 inches
• Pressure Rating: 1000 psi
• Temperature Range: -30 to 250 degrees Fahrenheit
• Finish: Orange Enamel
• Outside Diameter: 6-5/8 inches
• Connection Type: Grooved
