Product Description

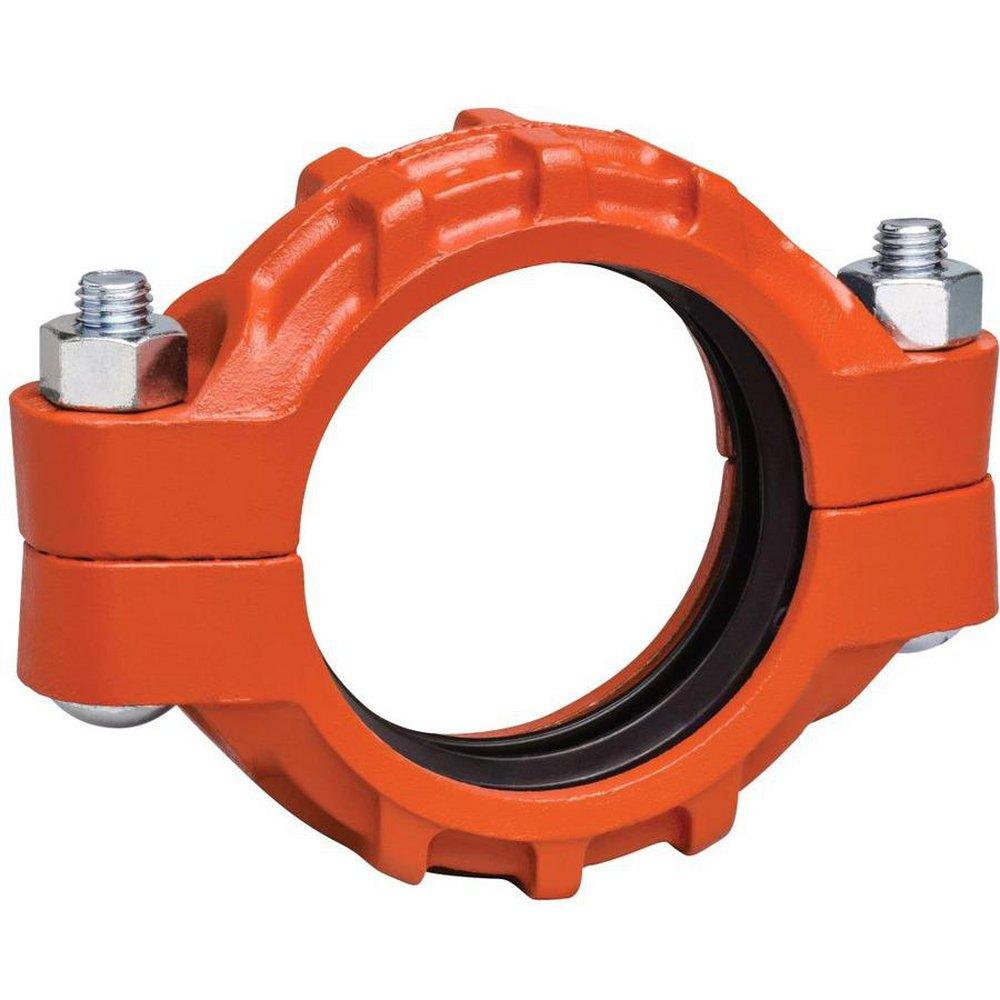

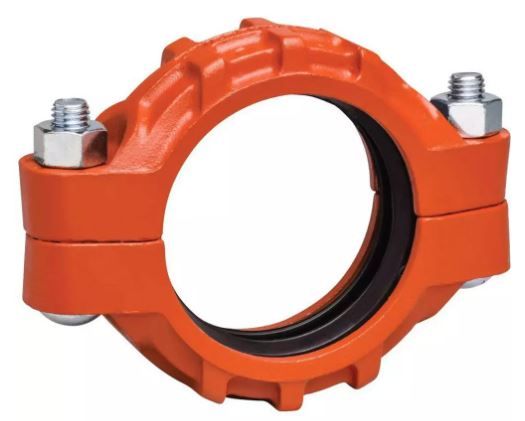

The VICTAULIC L060077PE0 Style 77 grooved coupling, available in sizes from ¾ – 24" / DN20 – DN600, provides a flexible pipe joint that allows for expansion, contraction, and deflection. It is designed for pressures up to 1000 psi / 6895 kPa / 69 bar.
- Provides a flexible pipe joint which allows for expansion
- Provides a flexible pipe joint which allows for contraction
- Provides a flexible pipe joint which allows for deflection
Product Highlights
This coupling joins standard roll grooved and cut grooved pipe, as well as grooved fittings, valves, and accessories.
Product Information
Standard Information
-
Brand: VICTAULIC
-
Manufacturer Part Number: L060077PE0
-
Country of Origin: Import
Technical Specifications
-
Brand: Victaulic
-
Product Type: Flexible
-
Size: 6 IN
-
Material: Ductile Iron
-
Part Number: 77
-
Finish: Orange
-
Temperature: -30 to 230DEG F
-
Standard: ASTM A-536
-
Bolt Size: 3/4x4-1/4IN
-
Gasket Type: E
-
Gasket Color: Green Stripe
-
Gasket Material: EPDM
-
Application: Connecting Pipes, Valves, and Fittings
-
Nominal Size: 6 In
-
Connection Type: Grooved
-
Material Standard: ASTM A536 Grade 65-45-12
-
Outside Diameter: 6-5/8 IN
-
Length: 11.88 IN
-
Maximum Pressure: 1000 PSI
-
Industry Standards: UL And CUL Listed, FM And CTP Approved
-
Other Physical Dimension: 2.13 IN Width, (2) 3/4 X 4-1/4 IN Bolt/Nut, 0 - 0.13 IN Allowable Pipe End Separation, 8.63 IN Body Outside Diameter
-
End Load: 34470 LB Maximum
-
Connection Size: 6 in
-
Item Name: Grooved Flexible Coupling with Grade "E" EPDM Gasket
-
Material Specifications: ASTM A536, Grade 65-45-12
-
Maximum End Load: 34470 lb
-
Model: 77
-
Pressure Rating: 1000 psi
-
Temperature Rating: -30 to 230 deg F
-
Type: Standard
-
End Style: Grooved
-
Schedule Rating: SCH 40/STD
-
Series: 77 Series
